3 Section Loft Ladder with handrail AL3
Product details

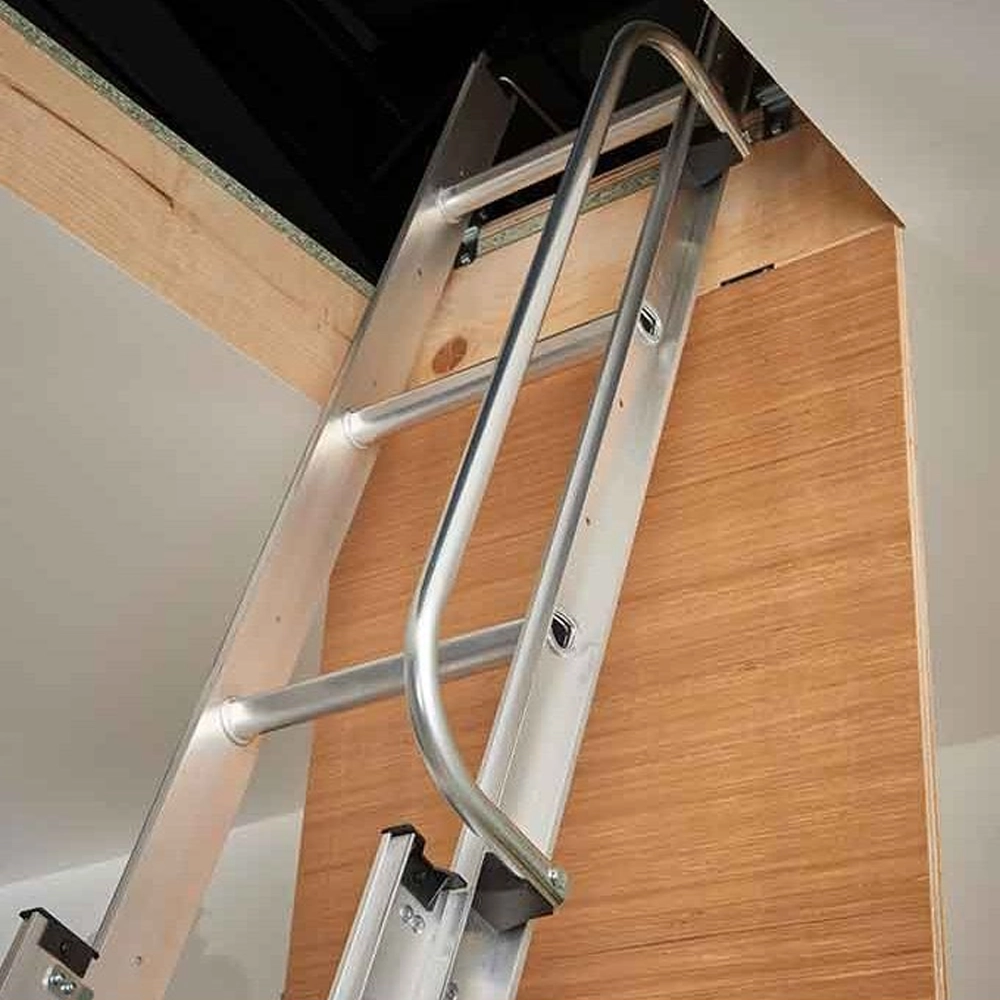

- Supplied with a single handrail
- 150KG weight limit
- Designed for smooth and quiet operation
- Suitable for heights up to 3m
- Easy-to-follow instructions for DIY installation
- Metallic/Galvanised Steel finish (Inferred)
- Width 310mm (outer edge to outer edge)
- Includes an access pole for ladder and hatch operation
The AL3 is a versatile, three-section aluminium loft ladder designed for residential properties with higher ceilings, providing safe access up to 3 meters.
Key Safety & Operation Features:

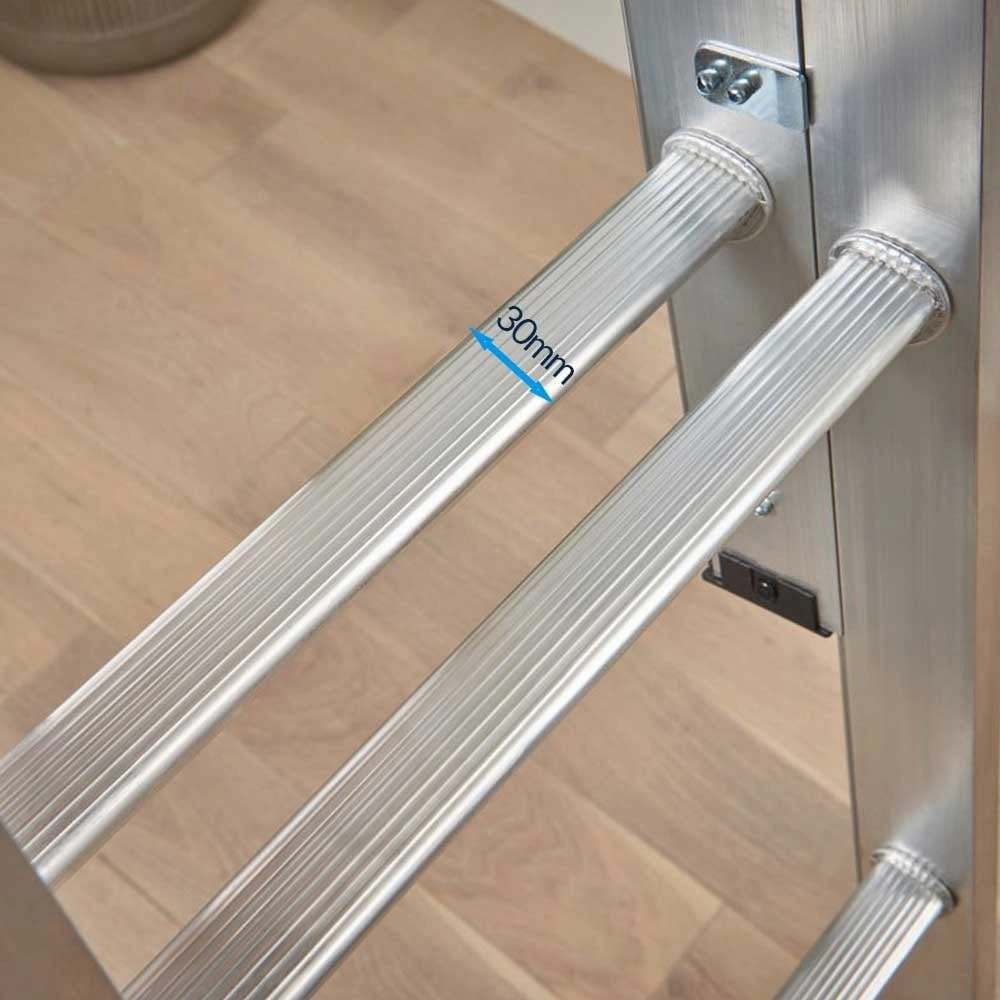

• Increased Height Capacity: Suitable for higher floor-to-floor heights up to a maximum of 3m (9'10").• Rungs & Safety: Features wide, non-slip 'D' shape ladder rungs for optimal comfort and security during use.
• Smooth Operation: Utilises unique friction guides to ensure smooth, easy, and controlled extension and retraction.
• Access Pole: The kit includes a loft ladder pole used to hook the bottom rung and guide the ladder into its stored or lowered position. This pole is also compatible with many different types of loft hatch catches.
Technical & Installation Specifications:
• Weight Limit: Approved with a substantial weight limit of 150Kg (23.6 Stone).• Compliance: Fully approved to the European safety standard EN 14975.
• Installation: Suitable for DIY installation.

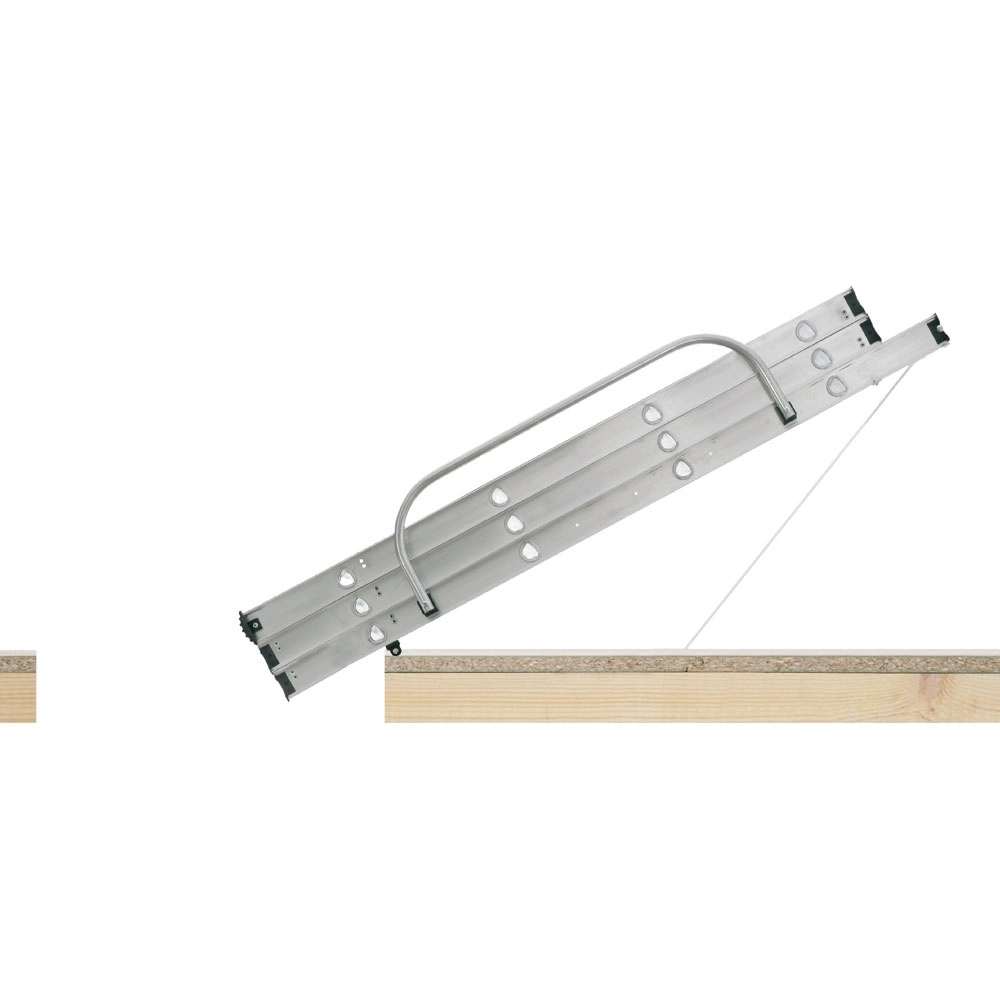

• Clearance Requirements: Requires a minimum clearance arc of 0.71m (2'4") and a minimum storage space of 1.27m (4'2") when stowed.
| Code | Sections | Max. Floor to Loft Floor Height |
Min. Floor to Loft Floor Height |
Min. Loft Opening Width |
Min. Clearance Arc |
Min. Storage Space |
|---|---|---|---|---|---|---|
| AL3 | 3 | 3.00m (9'10") | 2.13m (7') | 0.38m (1'3") | 0.71m (2'4") | 1.20m (3'8") |
Reviews
-
Delivery was unbeatably quick. Arrived wrapped well with all the parts needed. Easy to follow instructions, make sure you do follow them or you will curse later! Highly recommend, good product and great service.
-
Brilliant ladder. lightweight and quality. easy to fit and comes with all fittings even if you are creating loft hatch yourself. I bought pre-made hinged hatch so most parts weren't needed and ladder was really easy to install. Excellent value and top quality
-
Good sturdy product. Would recommend
-
Ladder is fine, goid for the job
-
instructions clear and fitted without any problems - did exactly what I wanted.
-
Great item, well packaged and delivered next day. Easy to install and Jupiter Blue were very helpful with an initial problem ordering the wrong height ladder (my fault for not reading the spec properly). Great service and will be recommending to friends
-
Excellent product & service. Although the packaging was branded \Werner\, the instructions reveal it is an Abru product, Well designed and made, slightly cheaper than similar from other suppliers. Delivered the following day, even though advised would be 3 working days. Will certainly use Jupiter again.
-
A very good product, at the right price and delivered the next day - what's not too like.
Specification
- Material
- Aluminium
- Wall or ceiling
- Ceiling Only
