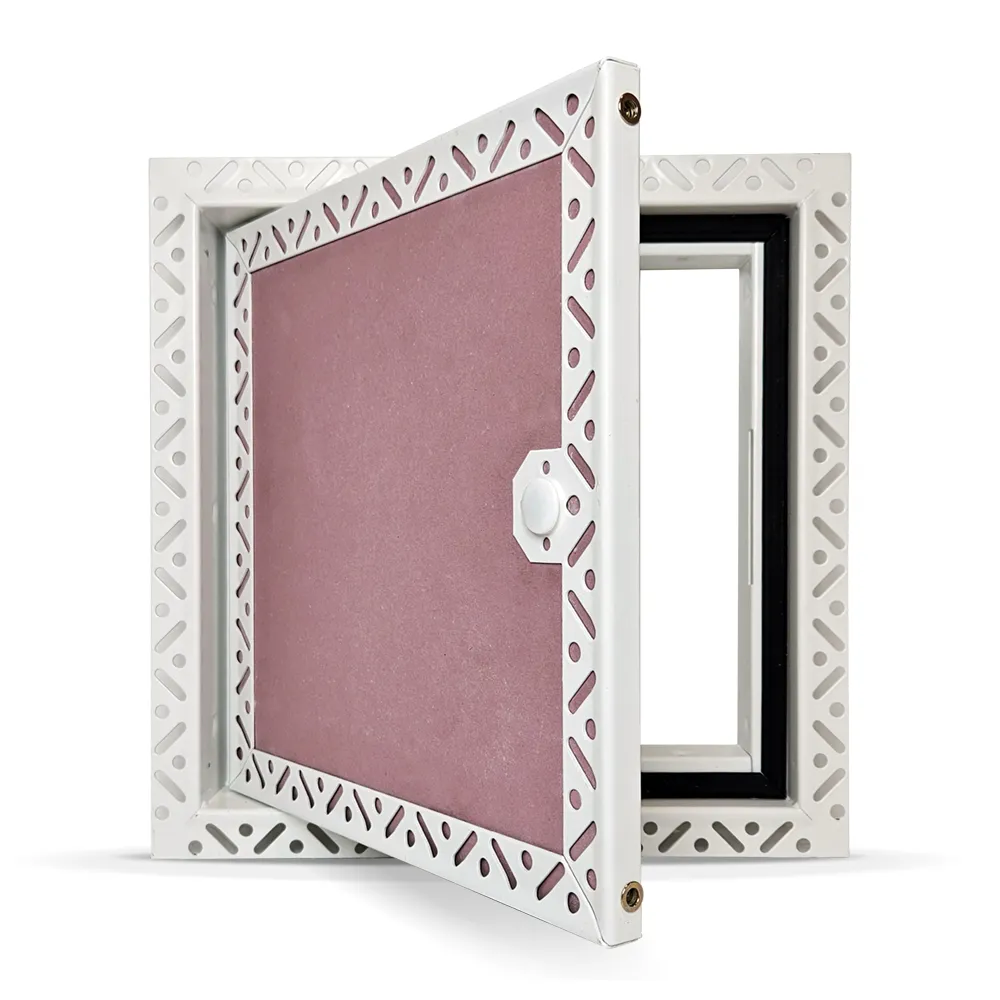

90Min Fire Rated Slim Access Panel with Plaster Door (Ceiling)
Product details
- 90-minute fire rated (ceilings) to BS EN 1634-1:2014 +A1:2018
- Updated hinge design for quick door removal and refitting
- 21 dB acoustic reduction
- Budget lock with white plastic cover bung for improved aesthetics
- Frame and door must be taped and jointed
- Fixed pin hinge
This type of plastered in Fire-Rated Access Panel delivers certified 60-minute fire protection combined with a discreet appearance to allow for practical usage along with visually pleasing aesthetics.
Certified Fire Performance:
• Certified Fire Rating: Independently tested and certified to BS 476: Part 22, providing 60 minutes of Integrity in both wall and ceiling applications.
• Compliance: Designed to meet the rigorous requirements of Building Regulations Part B (Fire Safety), ensuring specification confidence in regulated environments.
Material Specification:
• Construction: Fabricated from durable, corrosion-resistant Zintec steel and integrated with specialised fire-board infill.
• Finish: Supplied with a highly durable RAL 9010 Matt White polyester powder coating for a robust and seamless finish.
Did you know?
We can make this panel to custom dimensions.
Specification
- Frame style
- Beaded Frame
- Fire rating
- 90 Mins Fire Rated
- Tested to
- BS EN 1634-1:2014 +A1:2018
- Material
- Zintec Steel Frame, Plasterboard Door
- Frame width
- 25mm
- Wall or ceiling
- Ceiling Only
- Acoustic option
- 21dB Acoustic reduction
