1-HOUR FIRE RATED

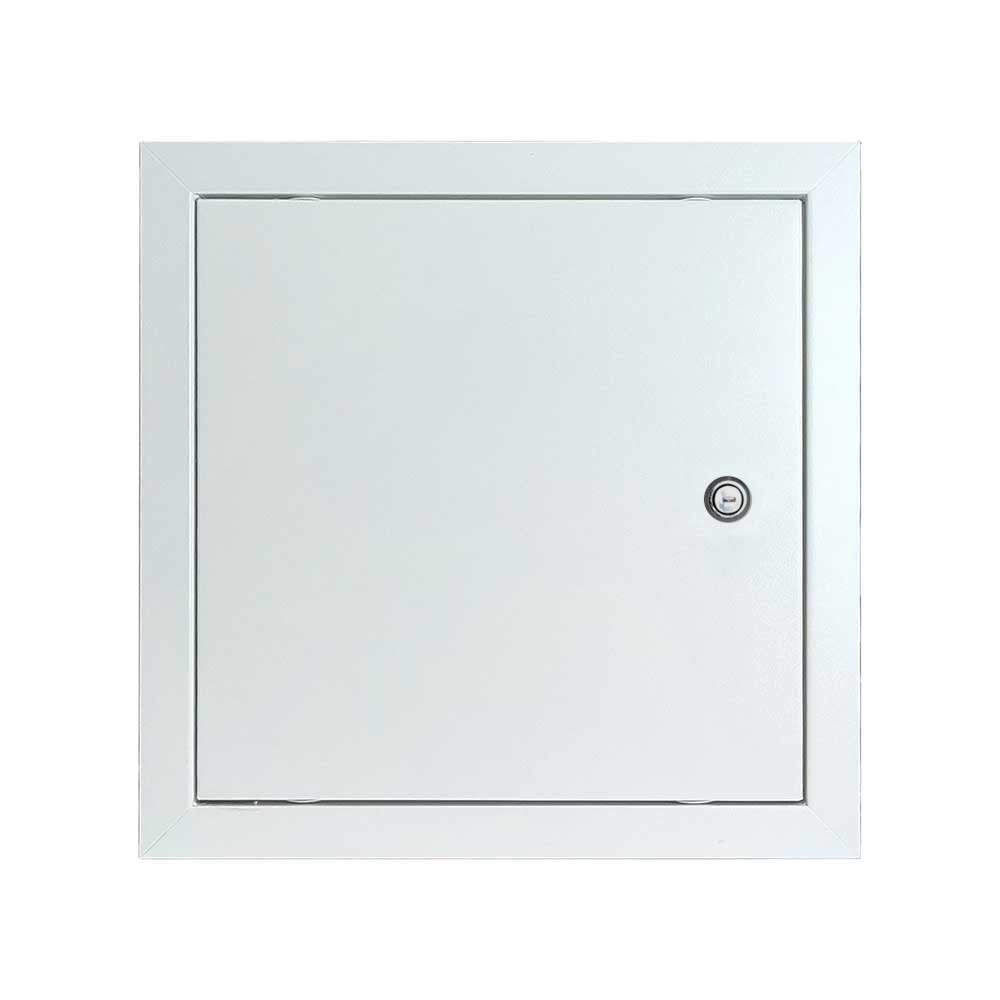

1hr Fire Rated Anti-ligature Access Panel
1 Hour Fire Rated · Picture Frame
Code:
ex VAT

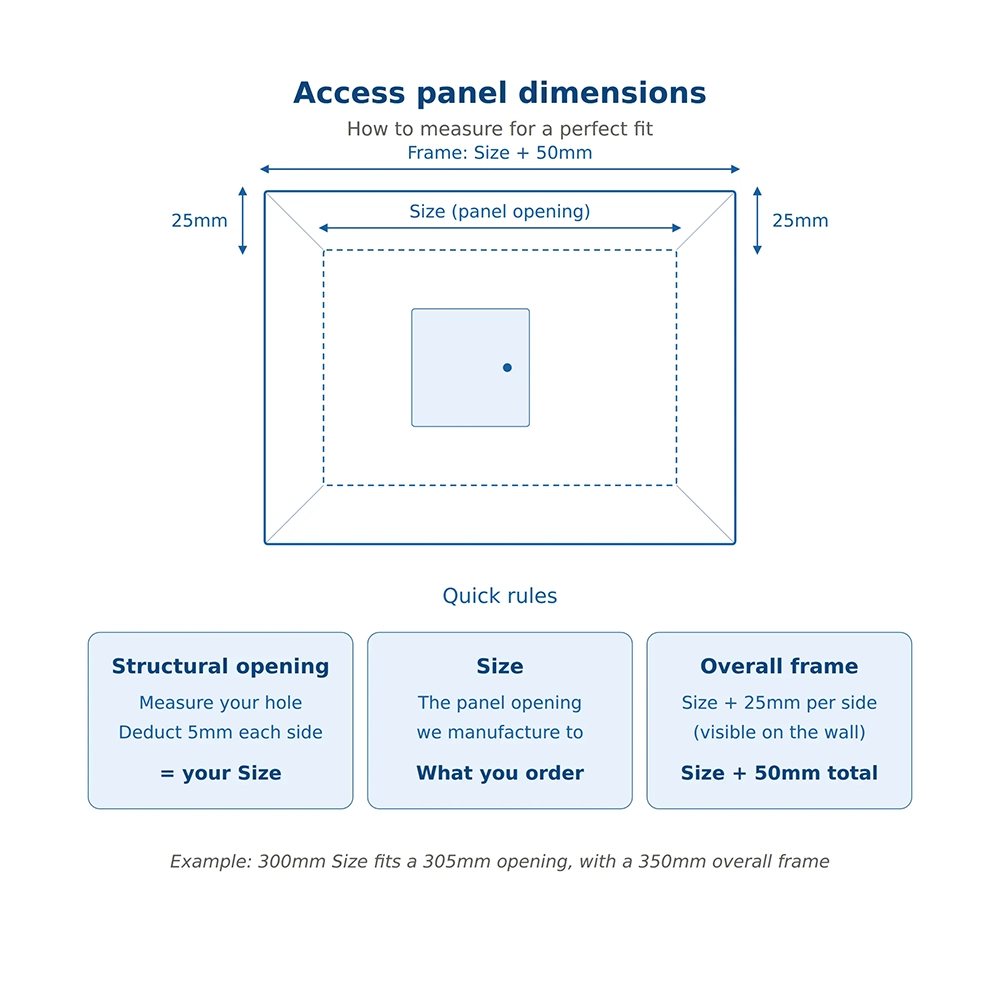

Size (mm)
Popular sizes
Other sizes
Made-to-measure lead time:
—
For large orders, lead times may vary — please contact us to confirm.
Hinge side *
Calculated price (per unit)
—
Price = price/sqm × (W × H) area
· minimum £90.00
Lock
Save on volume
Ordering 50 or more? We'll prepare a project-specific quote with delivery scheduling and account terms.
Call 01937 325 325 →
14-day returns
Phone support 8–5 Mon–Fri
Trusted by specifiers since 2007
Datasheet
Technical specifications
Test Certificate
1-HOUR FIRE RATED
Installation Guide
PDF instructions
Product details

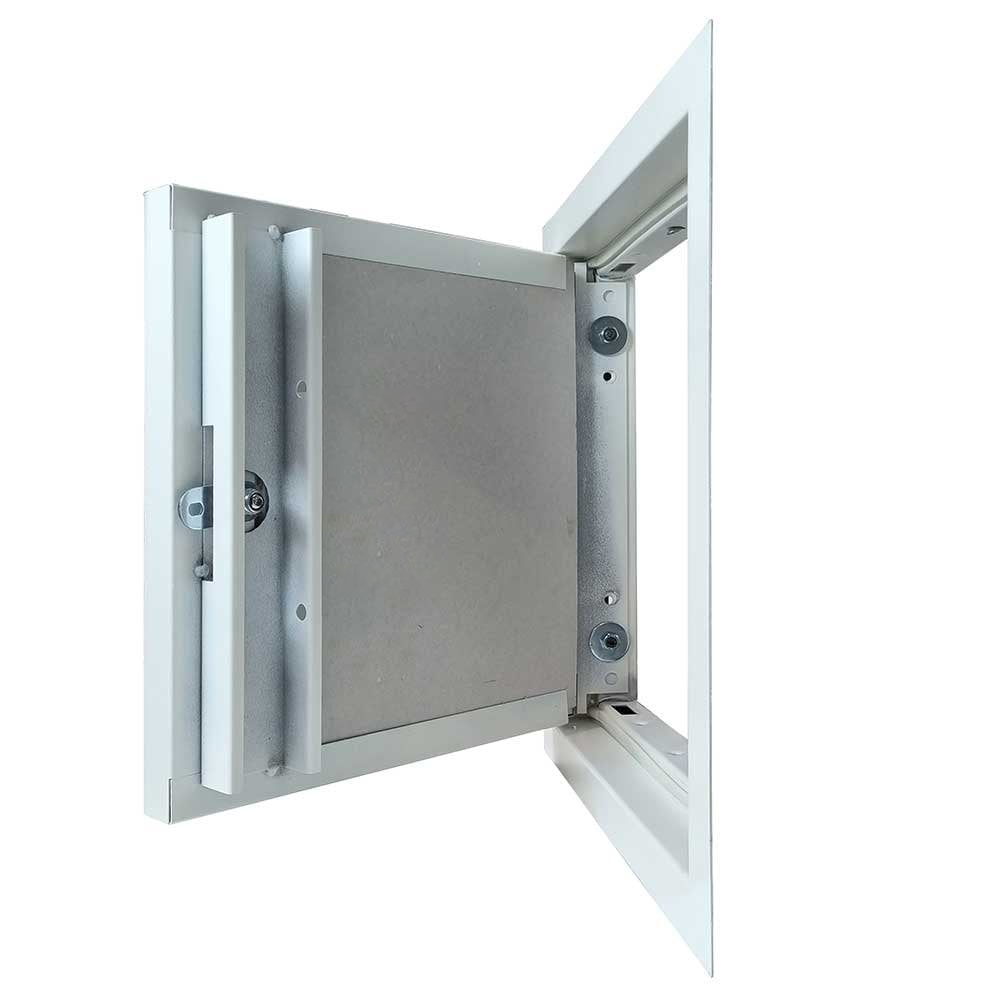

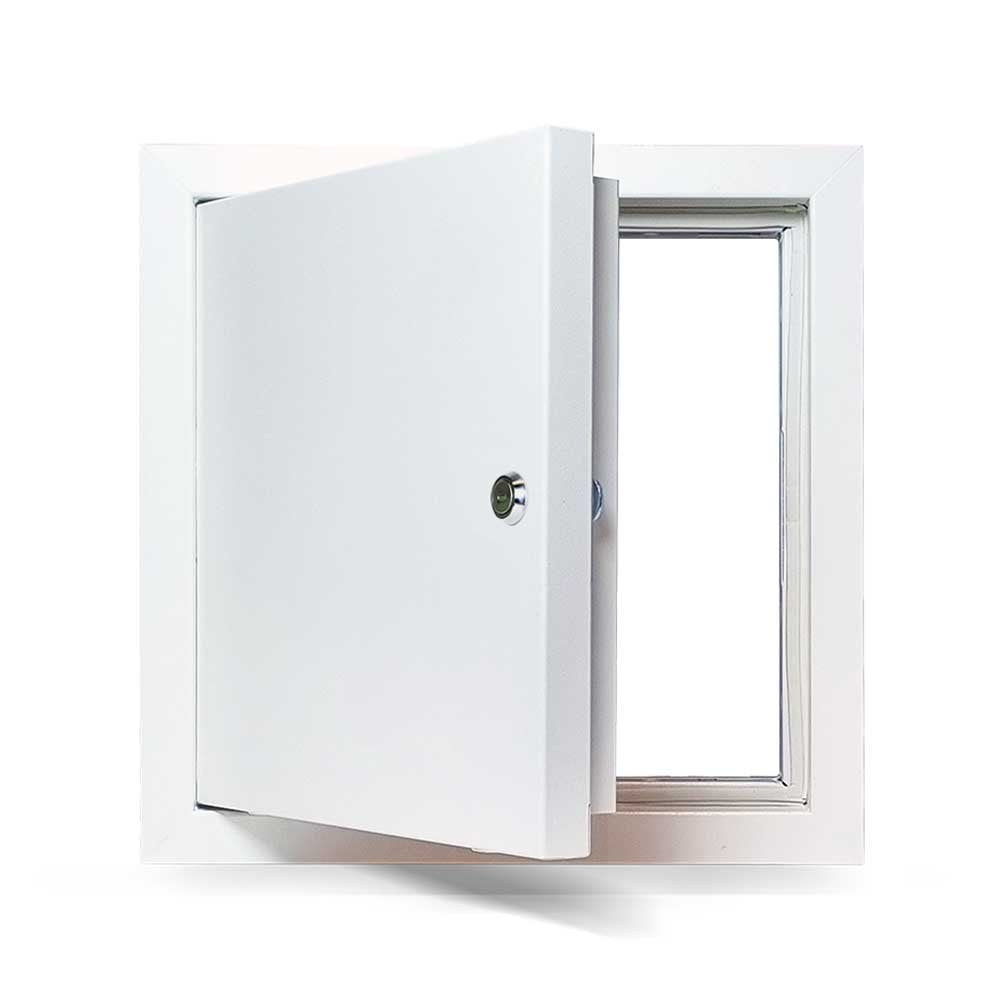

- Anti-Ligature Steel Access Panel
- Smoke Test Approved (BS EN 1634-3)
- 36dB acoustic reduction (UKAS tested)
- 1hr Fire Tested to BS 476 Part 22, in walls and ceilings
- Designed for high-security/healthcare environments (e.g., hospitals, prisons)
- Key Operated Lock
- Picture and Beaded frame options, White (RAL9016) finish
- Fabricated from 0.9mm Zintec steel
- Part B and Part J compliant
The Anti-Ligature Steel Access Panel is a specialized, fire-rated solution designed to mitigate self-harm risks in high-security, healthcare, and custodial environments while providing superior acoustic and smoke performance.
Safety & Performance Features:
• Application: Designed for high-security and high-risk environments such as hospitals, mental health facilities, police cells, and prisons, where vulnerable individuals may be present.• Acoustic Rating: Provides a high level of sound isolation, certified to 36dB acoustic reduction (UKAS tested).
• Smoke Compliance: Smoke Test Approved to BS EN 1634-3 standards.
• Construction: Fabricated from durable 0.9mm Zintec steel and compliant with Part B (Fire) and Part J (Combustion) Building Regulations.
Aesthetics & Security:
• Locking System: Secured with a restricted Key Operated Lock for authorised access only.• Finish: Standard finish is White (RAL 9016).
• Frame Options: Available with both Picture frame (sits over the aperture) and Beaded frame (plaster-in, concealed) options.
CRITICAL ANTI-LIGATURE DISCLAIMER
• IMPORTANT: The anti-ligature design elements are not intended to replace the need for necessary supervision of at-risk individuals or other mandatory protective measures. This product is not offered as "ligature-free", and liability for claims associated with ligature attachment is excluded.Please Note: We can make this panel to custom dimensions.
*Hinged on the long edge.
| Code | Nominal Panel Size | Clear Opening (Once Installed) |
Depth |
|---|---|---|---|
| ANTILIG-PF-150 | 150x150mm | 80x75mm | 52mm |
| ANTILIG-PF-200 | 200x200mm | 140x120mm | 52mm |
| ANTILIG-PF-300 | 300x300mm | 264x220mm | 52mm |
| ANTILIG-PF-350 | 350x350mm | 314x270mm | 52mm |
| ANTILIG-PF-450 | 450x450mm | 412x370mm | 52mm |
| ANTILIG-PF-550 | 550x550mm | 514x470mm | 52mm |
| ANTILIG-PF-600X300 | 600x300mm* | 565x235mm | 52mm |
| ANTILIG-PF-600 | 600x600mm | 564x520mm | 52mm |
Reviews
5.00
Based on 2 reviews
-
great deliverey and staff
-
great staff and delivery
Specification
- Frame style
- Picture Frame
- Fire rating
- 1 Hour Fire Rated
- Tested to
- BS 476 Part 22, in walls and ceilings
- Material
- Zintec Steel, white finish
- Frame width
- 25mm
- Wall or ceiling
- Both Wall & Ceiling
- Acoustic option
- 36dB Acoustic reduction
