Product details
- ·

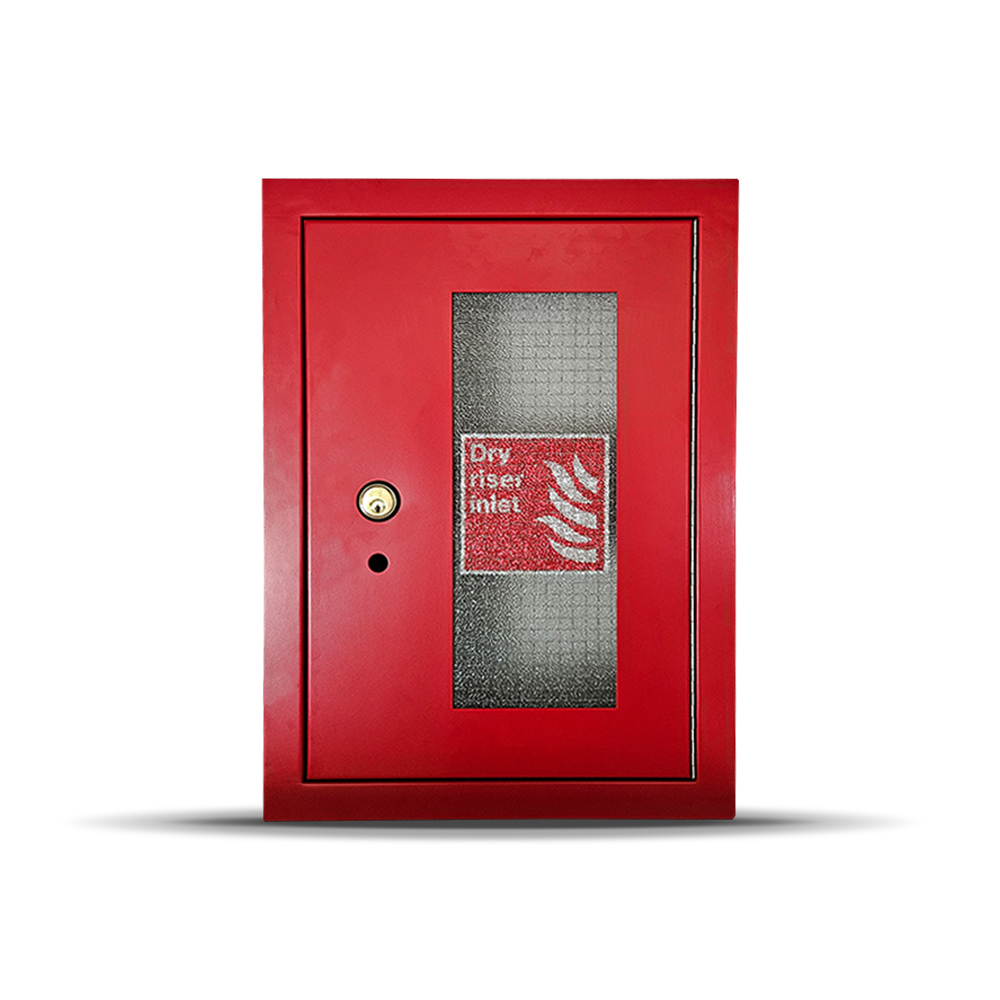

Vertical 2 Way Dry Riser Inlet Architrave and
Door
- ·
Height 595mm x Width 395mm
- ·
Frame depth of 80mm
- ·
Complies with BS 5041-5:1974
- ·
Keyed alike Slam Lock
- ·
Fitted with 6mm Georgian wired glass - can be
broken in emergency
- ·
Replacement glass, locks and stickers available
separately
- ·
Pop Rivets for door replacement in situ
- ·
20mm diameter hole in door to aid opening
- ·
Powder coated in Satin RAL 3002 (Traffic Red)
- ·
Available in Stainless Steel as a bespoke option
- ·
Fitted with a continuous hinge, door opens to
180˚
- ·
Also available in Cabinet style (Please link
below)
- · Bespoke sizes available (Contact us for more information)
Need higher spec?
Upgrade options on the same panel — useful for healthcare, education or acoustic-rated projects.
Current
Dry Riser Inlet Architrave & Door
6MM GEORGIAN WIRED GLASS · Picture Frame
+ 6MM GEORGIAN WIRED GLASS
Dry Riser Inlet Cabinet
From £210.60
View details →
+ 6MM GEORGIAN WIRED GLASS
Dry Riser Inlet Cabinet | Stainless Steel
From £335.00
View details →
Specification
- Frame style
- Picture Frame
- Fire rating
- Non Fire Rated
- Tested to
- Complies with BS5041: Part 5: 1974
- Material
- Zintec Steel RAL 3002
- Frame width
- 38mm
- Wall or ceiling
- Wall Only
