6mm Georgian Wired Glass
Dry Riser Outlet Architrave
Non Fire Rated · Picture Frame
Code:
ex VAT
Size (mm)
Other sizes
Lock
Save on volume
Ordering 50 or more? We'll prepare a project-specific quote with delivery scheduling and account terms.
Call 01937 325 325 →
14-day returns
Phone support 8–5 Mon–Fri
Trusted by specifiers since 2007
Datasheet
Technical specifications
Product details

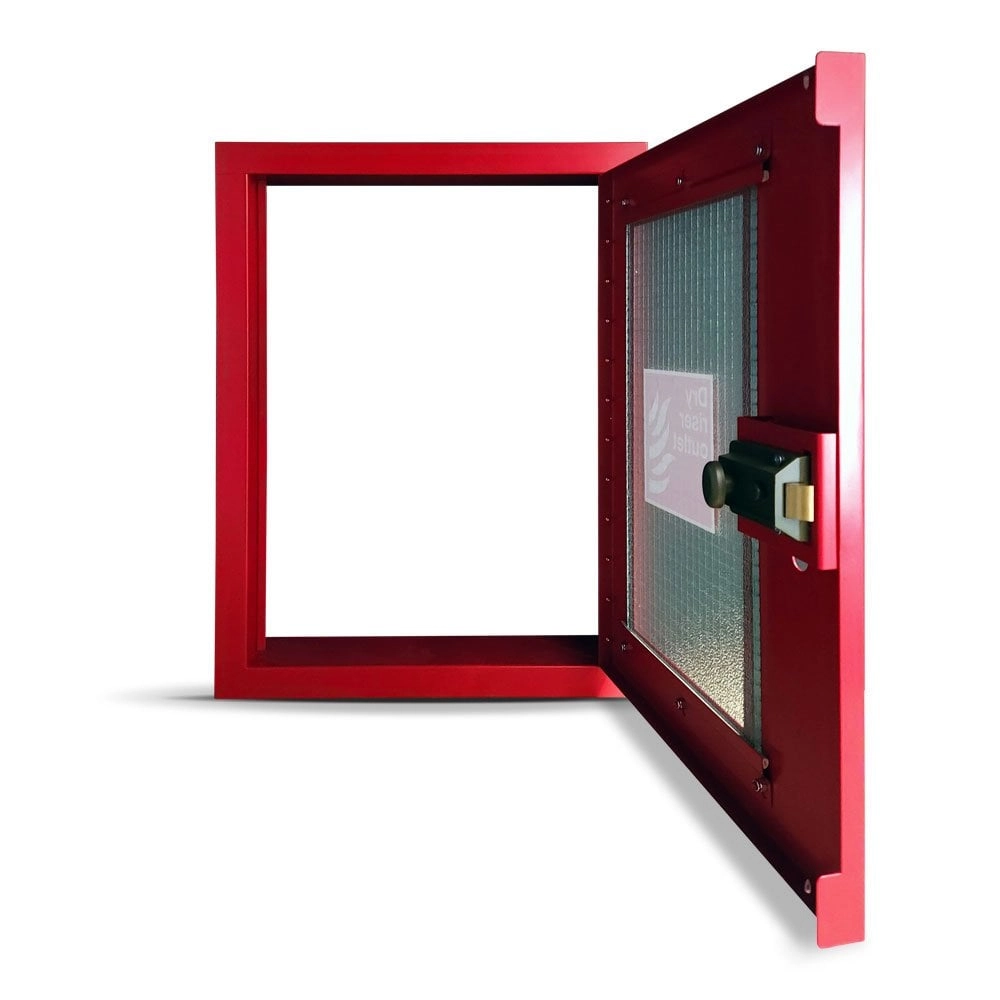

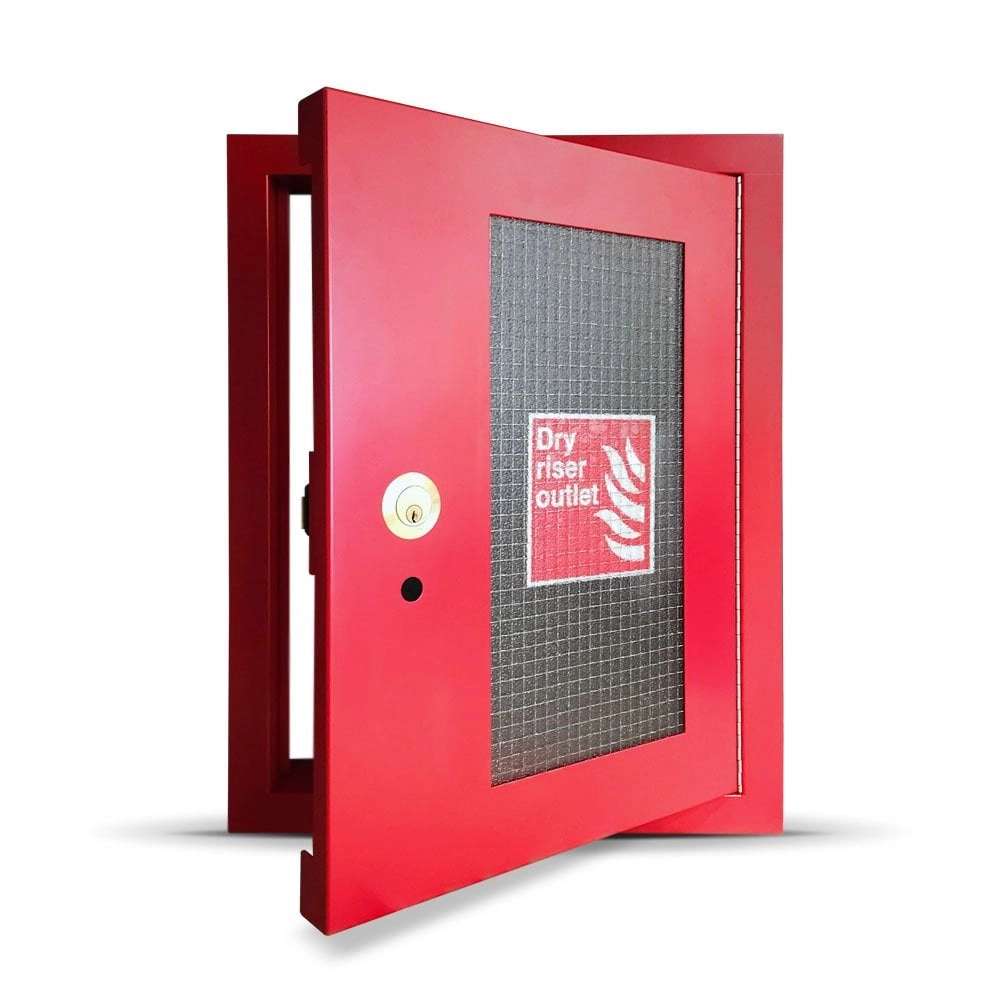

- Vertical Dry Riser Outlet Architrave and Door
- Height 630mm x Width 460mm
- Frame depth of 80mm
- Complies with BS5041:Part 4:1975
- Keyed alike Slam Lock
- Fitted with 6mm Georgian wired glass - can be broken in emergency
- Replacement glass, locks and stickers available separately
- Pop Rivets for door replacement in situ
- 20mm hole in door to aid opening
- Powder coated in Satin RAL 3020 (Traffic Red)
- Available in Stainless Steel as a bespoke option
- Fitted with a continuous hinge, door opens to 180˚
- Also available in Cabinet style
- Bespoke sizes available
The Dry Riser Architrave and Door is a robust, highly visible access product specifically designed to protect dry riser components from damage and dust while ensuring immediate and secure access during emergencies.
Safety, Security & Visibility:
• Finish: Finished in a striking and highly visible Satin RAL 3020 (Traffic Red), meeting fire safety colour codes.• Security: Fitted with a reliable Slam Lock for enhanced security while allowing controlled access.
• Access Visibility: The door is fitted with 6mm Georgian wired glass, which is designed to be easily broken in an emergency, allowing access to the unit.
Construction & Practical Features:
• Robust Build: Designed for enhanced durability and fitted with a continuous hinge for long-term reliability.• Sealing: Designed with perimeter seals to protect the internal dry riser components from dust ingress.
• Dimensions: Features a frame depth of 80mm.
• Custom Sizing: Bespoke sizes are available to suit various installation requirements.
Need higher spec?
Upgrade options on the same panel — useful for healthcare, education or acoustic-rated projects.
Current
Dry Riser Outlet Architrave
6mm Georgian Wired Glass · Picture Frame
+ 6MM GEORGIAN WIRED GLASS
Dry Riser Inlet Cabinet
From £210.60
View details →
Specification
- Frame style
- Picture Frame
- Fire rating
- Non Fire Rated
- Tested to
- Complies with BS5041: PART 4: 1975
- Material
- Stainless Steel RAL 3002
- Frame width
- 40mm
- Wall or ceiling
- Wall Only
