Fire Rated Access Panel | 1 Hour, Beaded Frame | Jupiter Blue

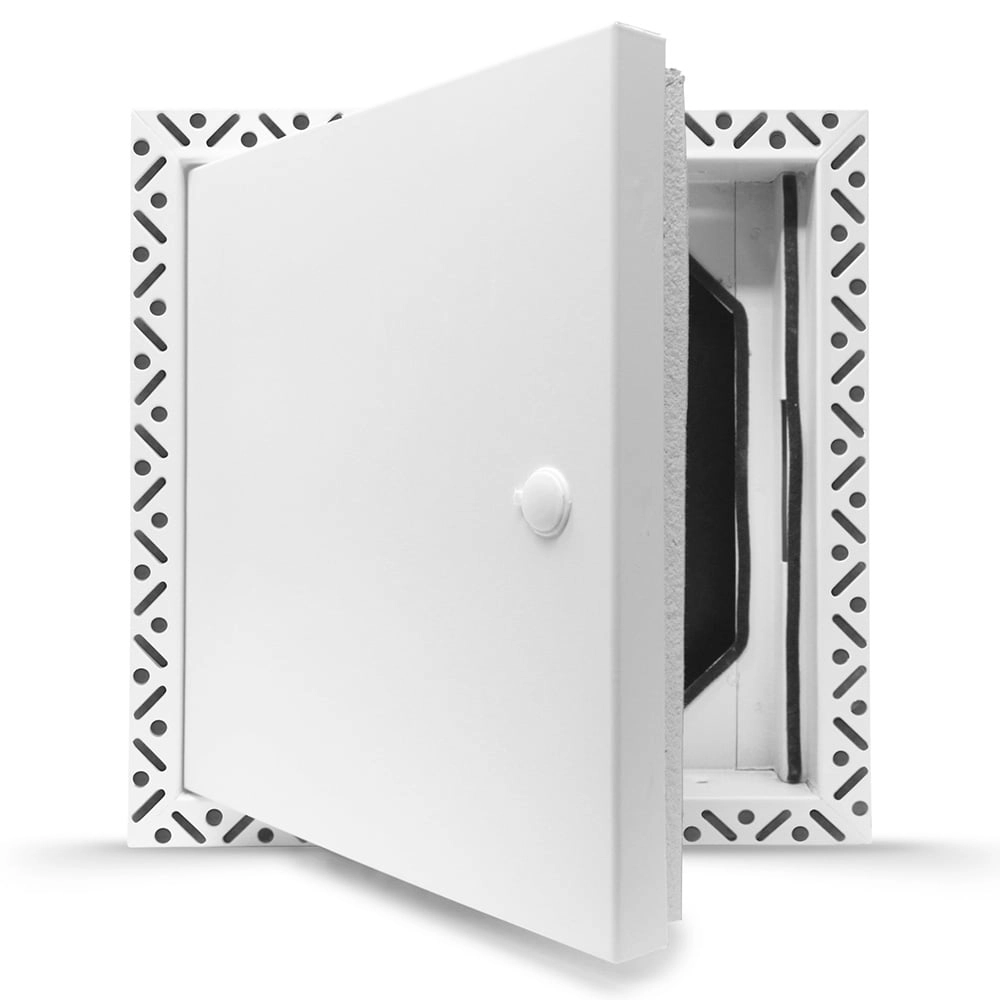

1hr Fire Rated Access Panel | Beaded Frame
1-HOUR FIRE RATED

1hr Fire Rated Access Panel | Beaded Frame

1 Hour Fire Rated · Beaded Frame
Code:
ex VAT
In stock — enter your postcode for delivery options
Free delivery to most UK mainland postcodes
Size (mm)
Popular sizes
Other sizes
Need a different size? Order made-to-measure →
Lock
Ordering 50 or more? We'll prepare a project-specific quote with delivery scheduling and account terms.
Call 01937 325 325 →
14-day returns Phone support 8–5 Mon–Fri Trusted by specifiers since 2007
Datasheet
Technical specifications
Test Certificate
1-HOUR FIRE RATED
Installation Guide
PDF instructions

Product details

  • 1 Hour Fire Rated to BS EN 1634-1 (Walls) & BS EN 1364-2 (Ceilings)
  • BS EN 1634-3 Smoke Test Pass (on 600x600mm specimen)
  • 34dB acoustic reduction

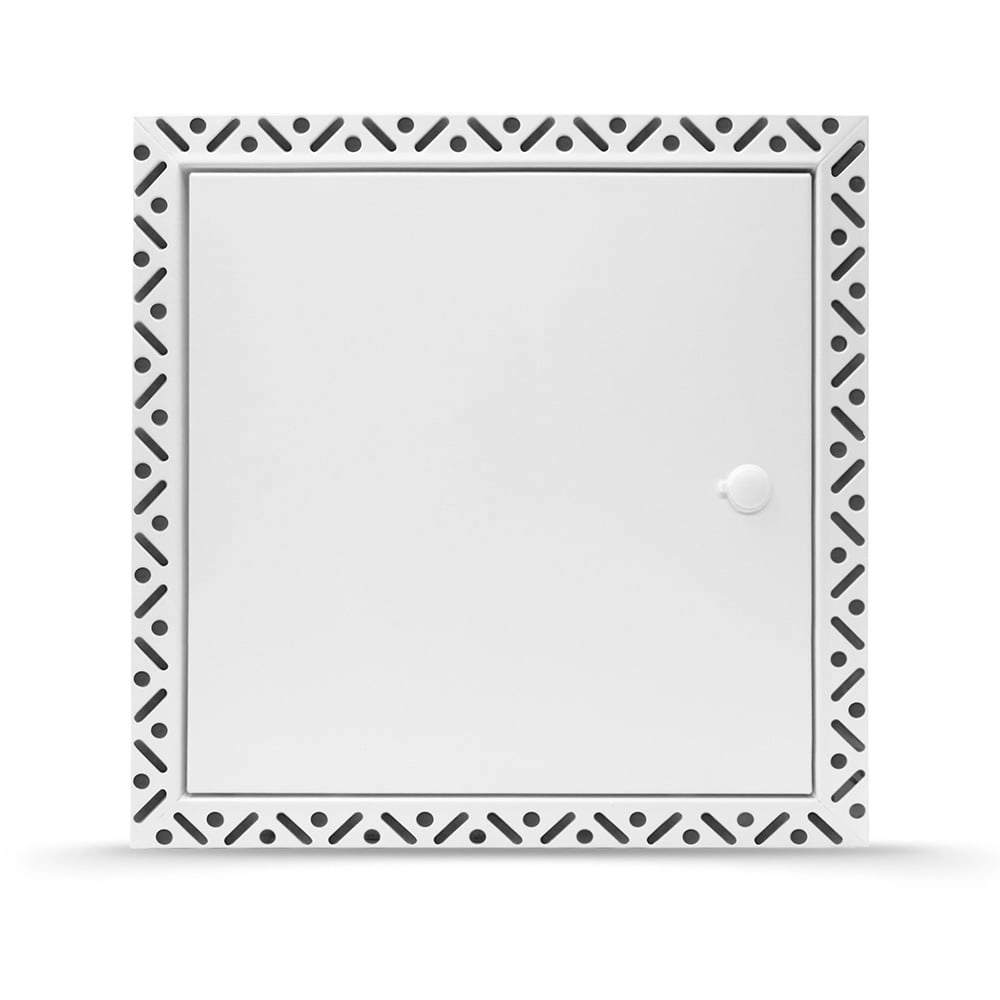

  • Beaded frame to allow for a more discreet finish
  • Suitable for Wall or Ceiling Use
  • Powder-coated in white RAL9010 (Standard Finish)
  • Fabricated from 0.9mm Zintec steel
  • Gas Flue Inspection Hatches (Part J Compliant)

The BFFD is a certified Fire Rated Access Panel specifically designed to provide essential inspection access and regulatory compliance for gas flues.

Mandatory Compliance & Fire Integrity:
• Regulatory Standard: Fully designed in accordance with Part J of the Building Regulations and Gas Safe recommended specifications for flue inspection hatches.
• Fire Rating: Maintains the full fire rating integrity of the surrounding wall or ceiling, suitable for applications where robust fire protection is mandatory.
• Versatile Application: Suitable for any application requiring access to services (plumbing, electrical) while strictly maintaining compartmentation integrity.

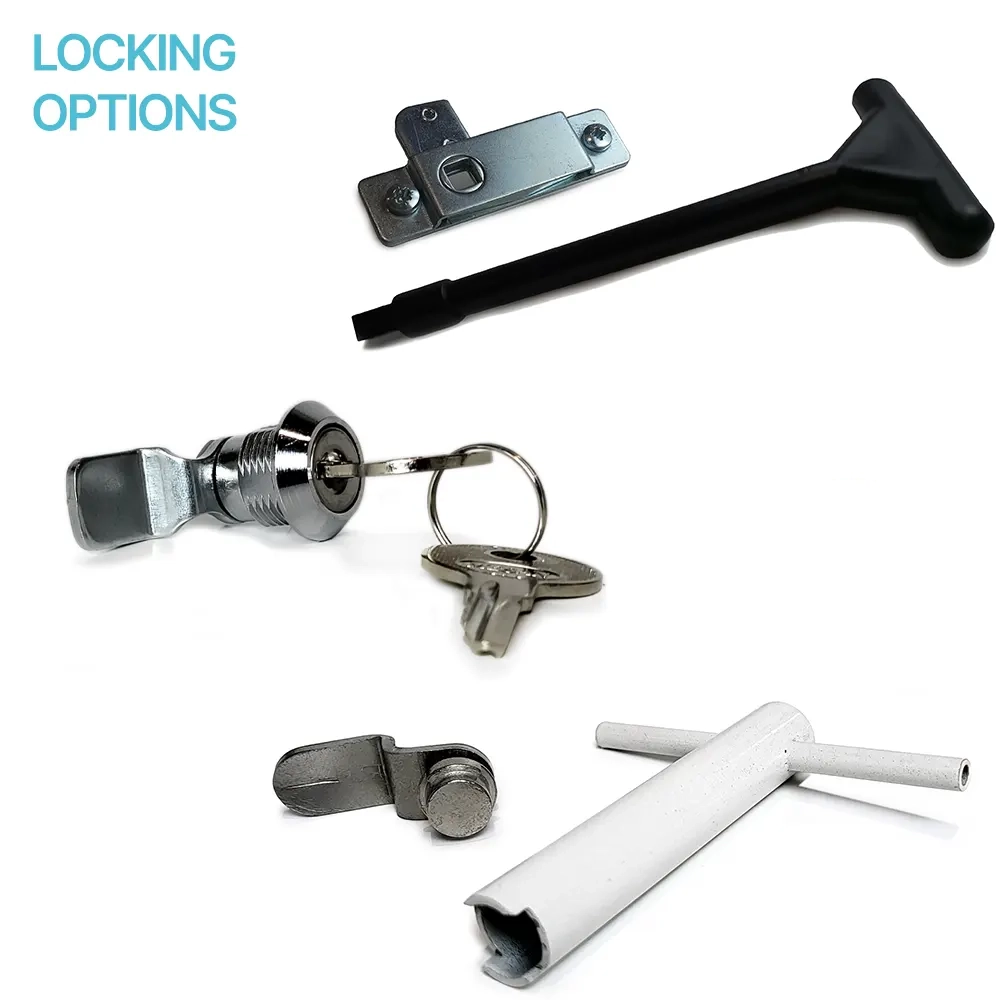

Access & Locking Options:
• Standard Locking: Supplied as standard with a reliable twist-style lock, operated via a square-ended black plastic key, ensuring controlled maintenance access.
• Security Upgrade: Tamper Proof locks are available as an optional upgrade, providing enhanced security (note: please allow an extra day for delivery when specifying tamper-proof locks).
• Frame Options: Available with both a Picture Frame (PFFD) and a Beaded Frame (BFFD) to suit different installation finishes (wall or ceiling).

*Hinged on the long edge.

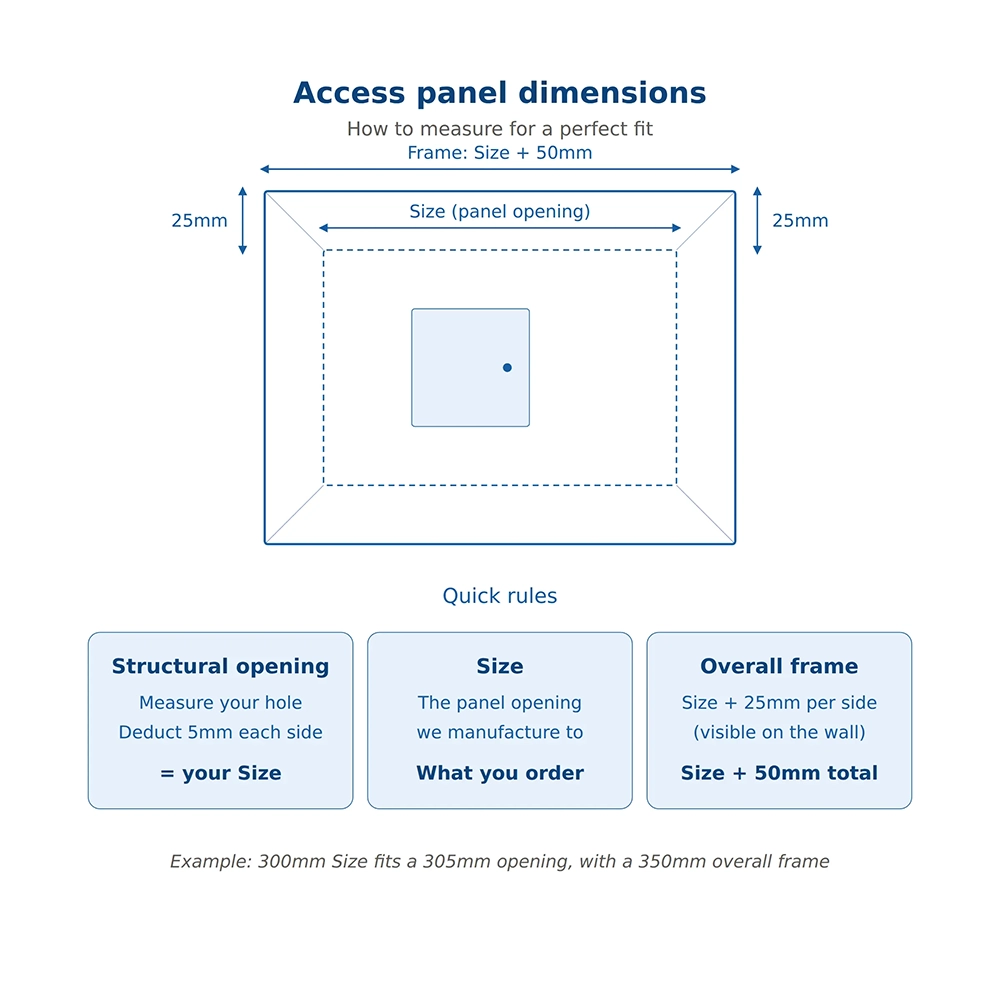

   CodeSizeStructural OpeningOverall size
(Inc. Frame)		Clear Opening
(Once Installed)		DepthWeight
BFFD-150x150
150x150mm155x155mm200x200mm80x75mm50mm1.7kg
BFFD-200x200
200x200mm205x205mm250x250mm140x120mm50mm2.4kg
BFFD-230x150
230x150mm*235x155mm280x200mm190x70mm50mm2.1kg
BFFD-300x300
300x300mm305x305mm350x350mm257x233mm50mm3.7kg
BFFD-350x350
350x350mm355x355mm400x400mm314x270mm50mm5.4kg
BFFD-400x400
400x400mm405x405mm450x450mm350x310mm50mm5.7kg
BFFD-450x450
450x450mm455x455mm500x500mm412x370mm50mm7.6kg
BFFD-500x500
500x500mm505x505mm550x550mm460x418mm50mm8.2kg
BFFD-550x550
550x550mm555x555mm600x600mm514x470mm50mm10.6kg
BFFD-600x300
600x300mm*605x305mm650x350mm565x235mm50mm6.7kg
BFFD-600x600
600x600mm605x605mm650x650mm564x520mm50mm12.0kg
BFFD-900x600
900x600mm*905x605mm950x650mm865x520mm50mm17.8kg
BFFD-1200x600
1200x600mm*1205x605mm1250x650mm1175x565mm50mm21.5kg

Reviews

5.00 Based on 12 reviews

  • Excellent as always

    Joseph Warburton Verified Customer 6 months ago

  • After spending time looking at various options I purchased this, great quality and worth the money, very easy to fit.

    Hamish Garvin Verified Customer 9 months ago

  • Very easy to order, excellent quality and easy fitting. Bought 3 now. Definitely recommend!

    Sean Manning Verified Customer 2 years ago

  • Easy ordering process, quick delivery and super quality. Can’t ask for more. Ordered 2!

    Sean Manning Verified Customer 2 years ago

  • My customer ordered the wrong type of panel, no issues at all swapping them, a great service.

    Anonymous Verified Customer 2 years ago

  • Good quality and price

    Linda 8 years ago

  • Needed three of this product but only ordered one to make sure that it was good enough quality. I can confirm that I am pleased with it and it works well. I will now be ordering the other two.

    Clive Saddler 8 years ago

  • Very good customer service with assistance and on products offered and recommendation to choose the best product for my circumstances. Will be installing product shortly.

    Maria-Eleni V 9 years ago
Read all customer reviews →

Specification

Frame style
Beaded Frame
Fire rating
1 Hour Fire Rated
Tested to
BS EN 1634-1:2008 and BS EN 1634-2:1999 or BS476 Part 22
Material
Zintec Steel, white finish
Frame width
25mm
Wall or ceiling
Both Wall & Ceiling
Acoustic option
34dB Acoustic reduction
