1 HOUR FIRE RATED
Fire Rated Electric Meter Overbox
1 Hour Fire Rated · Picture Frame
Code:
ex VAT
Size (mm)
Other sizes
Made-to-measure lead time:
—
For large orders, lead times may vary — please contact us to confirm.
Hinge side *
Calculated price (per unit)
—
Price = price/sqm × (W × H) area
· minimum £197.00
Lock
Save on volume
Ordering 50 or more? We'll prepare a project-specific quote with delivery scheduling and account terms.
Call 01937 325 325 →
14-day returns
Phone support 8–5 Mon–Fri
Trusted by specifiers since 2007
Datasheet
Technical specifications
Test Certificate
1 HOUR FIRE RATED
Installation Guide
PDF instructions
Product details
- 1 Hour Fire Rated to BS476 Part 22

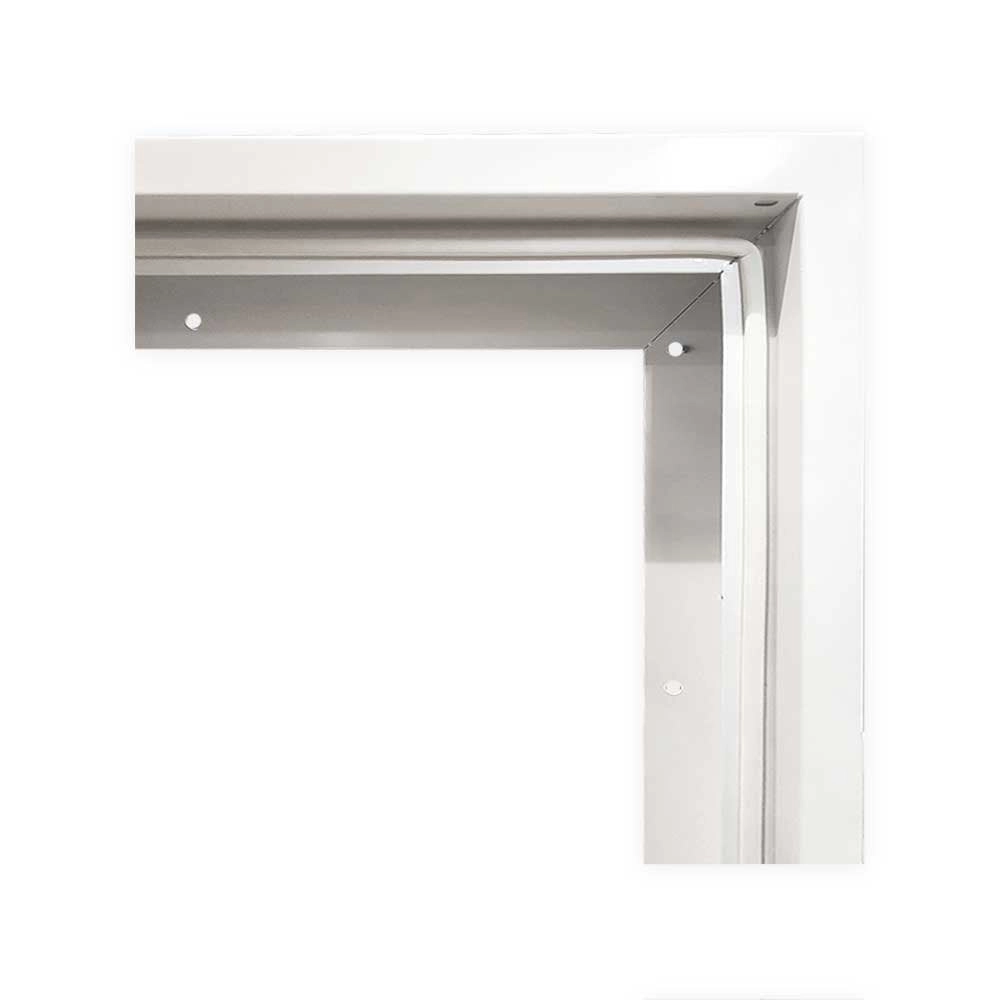

- Draft sealed with D section polyurethane seal
- Easy to open for meter readings and inspections
- Indoor use only
- Concealed hinge and optional Tamper Proof locks
- Factory finished in white RAL9016 (no painting required)
- Made to order in the UK
- Can be hinged on the right or left side (no tools needed)

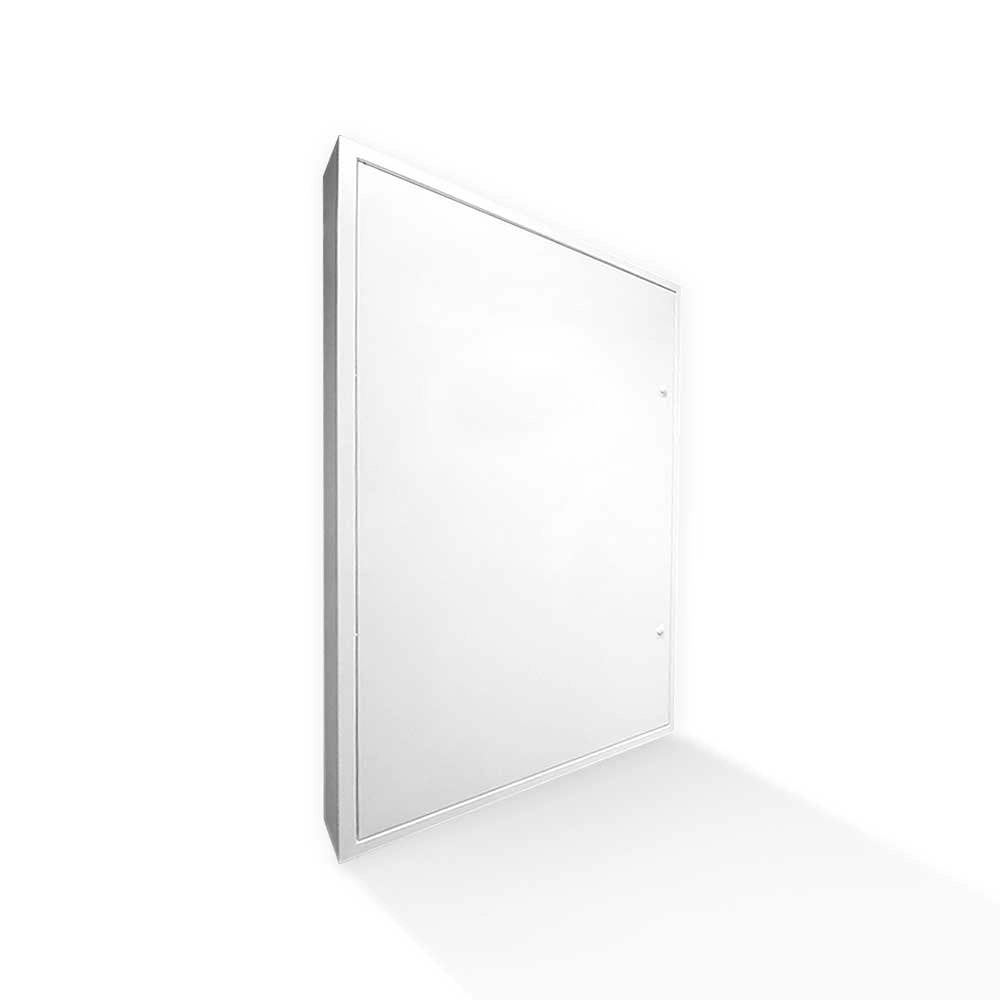

The Fire Rated Electric Meter Overbox provides a critical safety solution, offering 1-Hour Fire Rating while concealing meters and ensuring easy, flexible access for inspections.
Safety & Compliance:
• Fire Rating: Certified with a 1-Hour Fire Rating tested to BS 476 Part 22 (One Way), providing essential protection around electrical components.• Airtightness: Fitted with a D section polyurethane seal to ensure the box is effectively draft sealed.
• Usage: Designed for indoor use only.
Design, Sizing & Access:
• Tested Size: The product is fire tested to a maximum internal size of 1100mm x 620mm.• Overall Dimensions: The overall size will be 200mm larger than the internal dimensions on both sides. The door depth is 25mm and is included in the overall depth.
• Reversible/Removable Door: Features a concealed spring pin hinge allowing the door to be easily removed during fitting and providing the flexibility to hinge on the right or left side without the need for tools.
• Locking Options: Door is secured by two quarter-turn locks. Options include the Budget lock (8mm square drive key) or a Tamper Proof lock insert for increased security. Both lock keys are supplied.
Finish & Manufacturing:
• Finish: Factory finished in White RAL 9016, eliminating the need for priming or painting.• Manufacturing:� Made to order in the UK.
Bespoke colours available on request.
| Code | Lock Option | Min-Max Width | Min-Max Height | Min-Max Depth |
|---|---|---|---|---|
| FR-MET-OVER-BX | Budget/Tamper Proof | 300-673mm | 450-1153mm | 50-155mm |
Reviews
Specification
- Frame style
- Picture Frame
- Fire rating
- 1 Hour Fire Rated
- Tested to
- Fire Rated to BS476 Part 22
- Material
- Zintec Steel, white finish
- Frame width
- 25mm
- Wall or ceiling
- Wall Only
