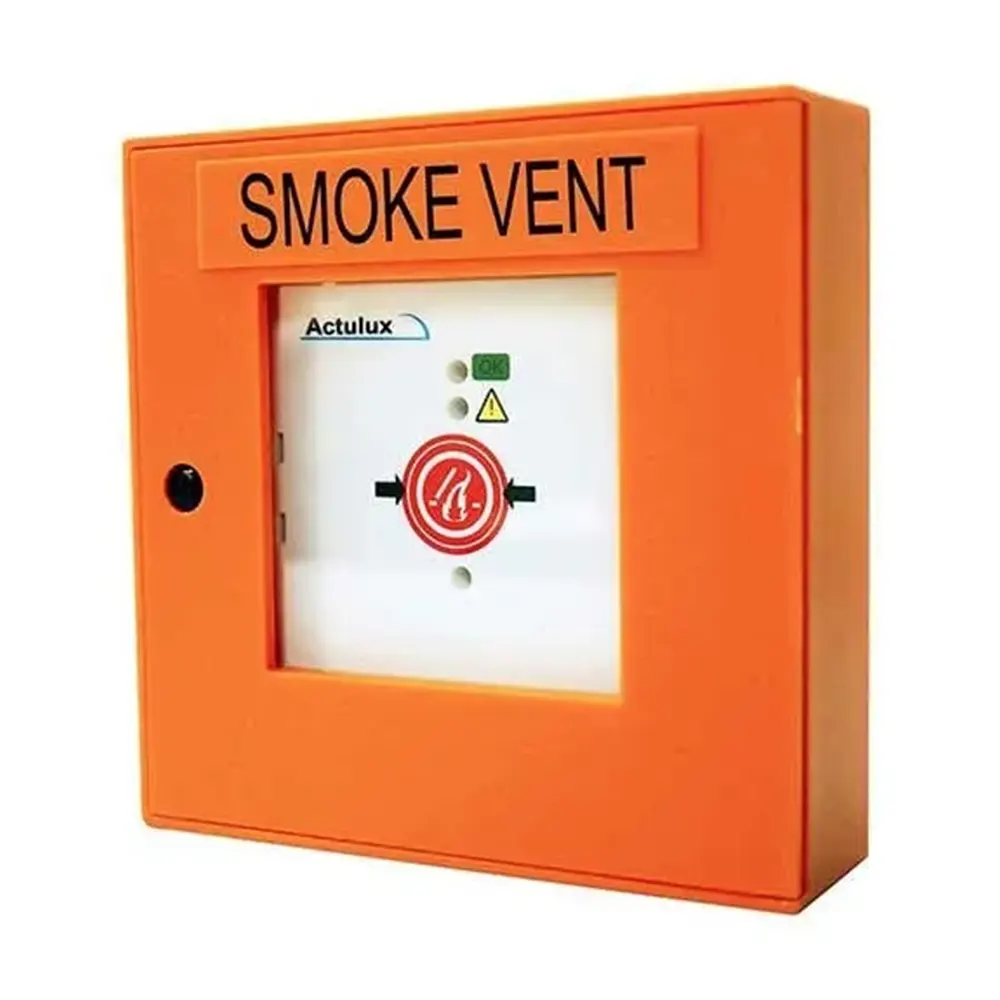

Fire Switch for AOV Smoke Vent (IP40)
Code:
ex VAT
Size (mm)
Other sizes
Save on volume
Ordering 50 or more? We'll prepare a project-specific quote with delivery scheduling and account terms.
Call 01937 325 325 →
14-day returns
Phone support 8–5 Mon–Fri
Trusted by specifiers since 2007
Datasheet
Technical specifications
Product details
- Function: Alarm (open), reset and off, sound indicator
- LED indication: ’’ok”, “error” (yellow), “alarm activated’’ (red)
- Size: 125 mm x 125 mm x 36 mm (W x H x D)
- Colour: Orange, (grey available on request on request)
- Protection degree: IP40
- Consumption on error: 2.2 mA
OPERATION INSTRUCTIONS
During fire: Break the glass and activate the red button.
During test open the lid and activate the red button.
Closing and alarm reset: Open the lid - activate the black
reset button, alarm is reset and skylights are closed.
