Picture Frame Access Panel | Touch Latch Lock
Product details
- No locks visible when shut (concealed mechanism)
- Press and release to open (push-catch mechanism)
- Slim contemporary panel design
- Hinged door that is easily removable
- Slimline 25mm Picture or Beaded Frame
- Powder-coated in white RAL9010 with satin finish
- Fabricated from 0.9mm Zintec steel
- Suitable for wall and ceiling use

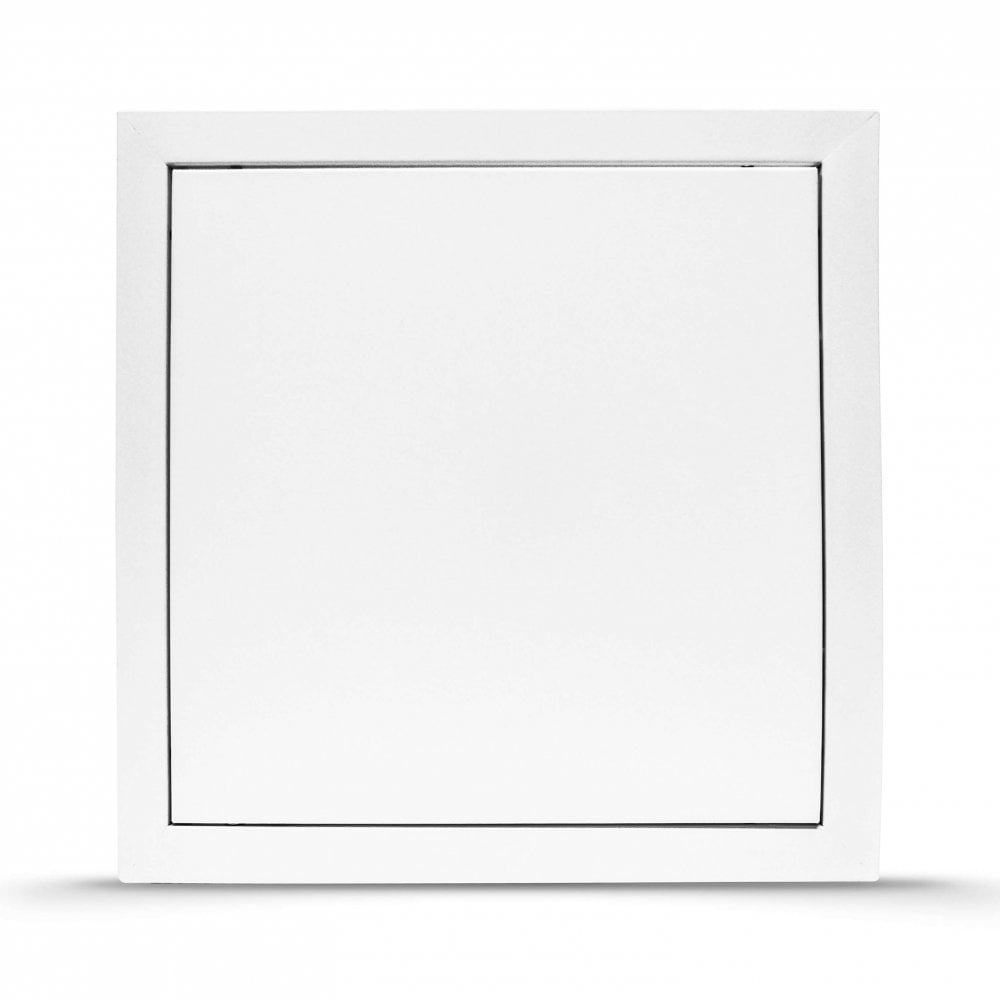

The PFS-TL is our premium, non-fire rated access panel, engineered for aesthetic concealment using a minimalist, touch-latch opening system.
Aesthetic & Concealment Features:

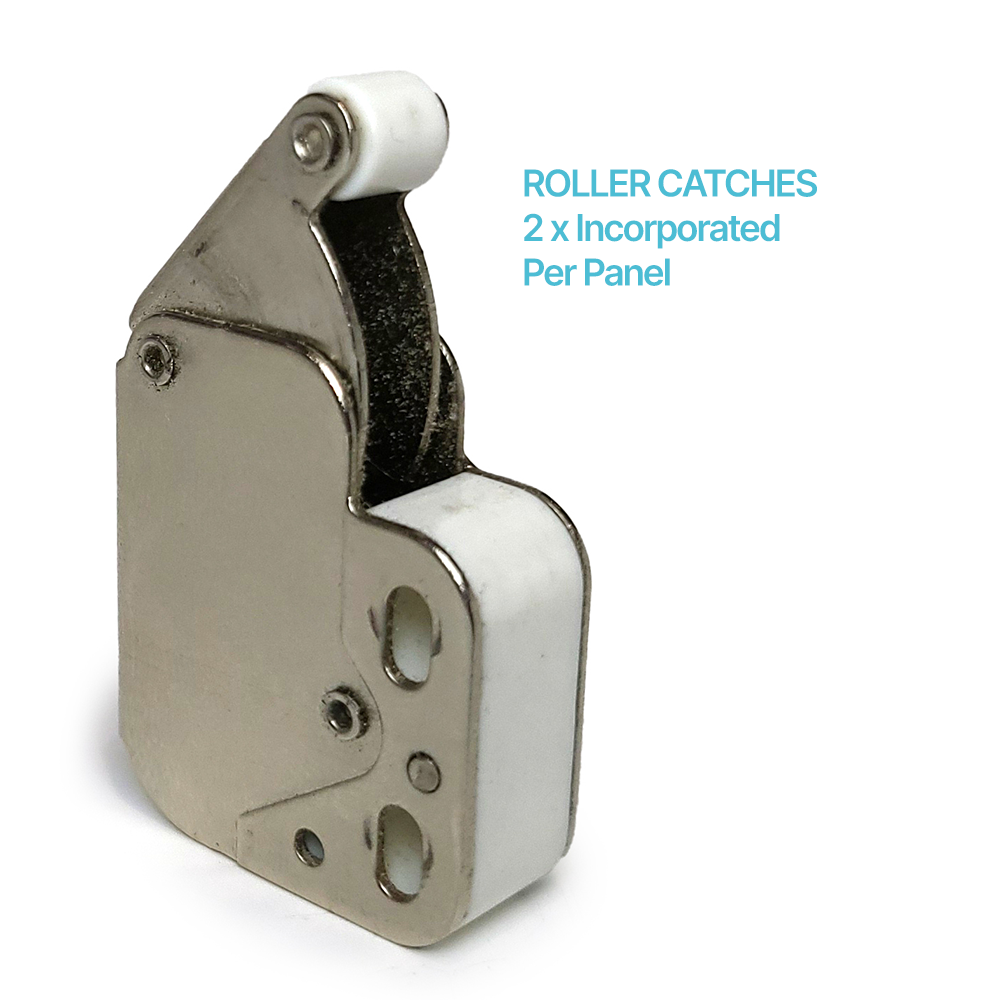

• Seamless Finish: Equipped with a twin touch-latch system, eliminating the need for a visible lock or handle, ensuring a clean, uninterrupted wall or ceiling surface.• Slimline Design: The access door and picture frame maintain a sleek 25mm profile, contributing to minimal visual intrusion and a flush fit.
Technical Installation Specification:
• Frame Options: Available with both a Picture Frame (PFS-TL) for simple surface mounting and a Beaded Frame (BFS-TL) for seamless plaster-in concealment.• Depth Allowance: While the panel depth is 27mm, the twin touch-latch mechanisms extend to 36mm deep. *Allowance for this depth must be factored into the installation void.*
• Construction & Finish: Fabricated from durable Zintec steel and coated in a RAL 9010 White satin finish, supplied with multi-fixing holes for easy installation into varying substrate depths.

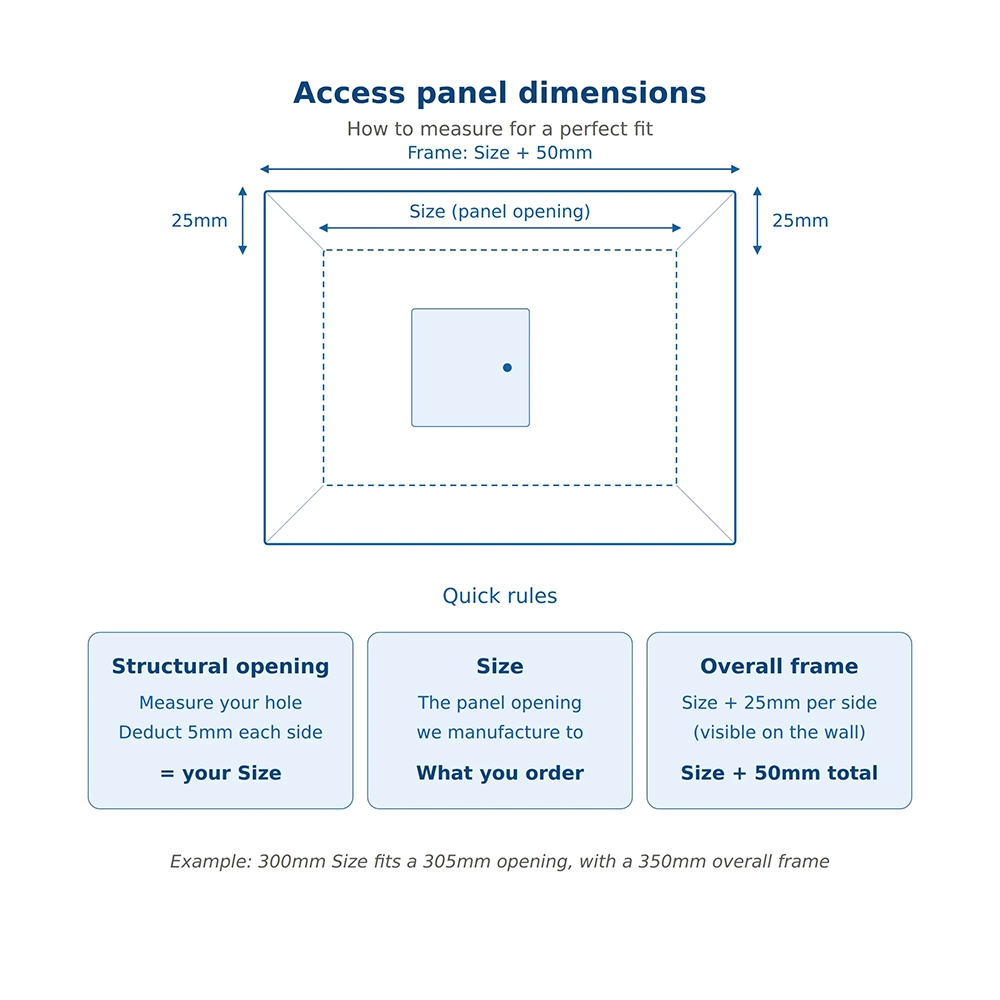

| Code | Size | Structural Opening | Overall size (Inc. Frame) |
Clear Opening (Once Installed) |
Depth | Weight |
|---|---|---|---|---|---|---|
| PFS-TL-150 |
150x150mm | 155x155mm | 200x200mm | 148x100mm | 27mm* | 0.5kg |
| PFS-TL-200 |
200x200mm | 205x205mm | 250x250mm | 198x150mm | 27mm* | 0.7kg |
| PFS-TL-300 |
300x300mm | 305x305mm | 350x350mm | 298x250mm | 27mm* | 1.3kg |
| PFS-TL-350 |
350x350mm | 355x355mm | 400x400mm | 348x300mm | 27mm* | 1.7kg |
| PFS-TL-450 |
450x450mm | 455x455mm | 500x500mm | 448x400mm | 27mm* | 2.6kg |
| PFS-TL-550 |
550x550mm | 555x555mm | 600x600mm | 548x500mm | 27mm* | 3.4kg |
| PFS-TL-600 |
600x600mm | 605x605mm | 650x650mm | 598x550mm | 27mm* | 3.8kg |
Reviews
-
Haven't fitted it yet but expect it will be good based on the quality and previous experience
-
orderd Friday ,delivered on Monday; access door is solid and whole unit is flush in the box
-
Great service & product was good. No complaints
-
Does what expected. Good quality
-
Excellent well made product. Originally ordered touch latch lock type but forgot to take into account overall increase in depth and could not fit. No problem changing them for the slimmer key operation type. Customer service extremely professional and helpful.
-
Well made product, the satin finish looks clean and professional. Latches work well.
-
Well made in painted steel. (satin off white). Clean and neat appearance with good latch function. Very good.
-
Good panel , looks very inconspicuous in its location
Specification
- Frame style
- Picture Frame
- Fire rating
- Non Fire Rated
- Material
- Zintec Steel, white finish
- Frame width
- 25mm
- Wall or ceiling
- Both Wall & Ceiling
