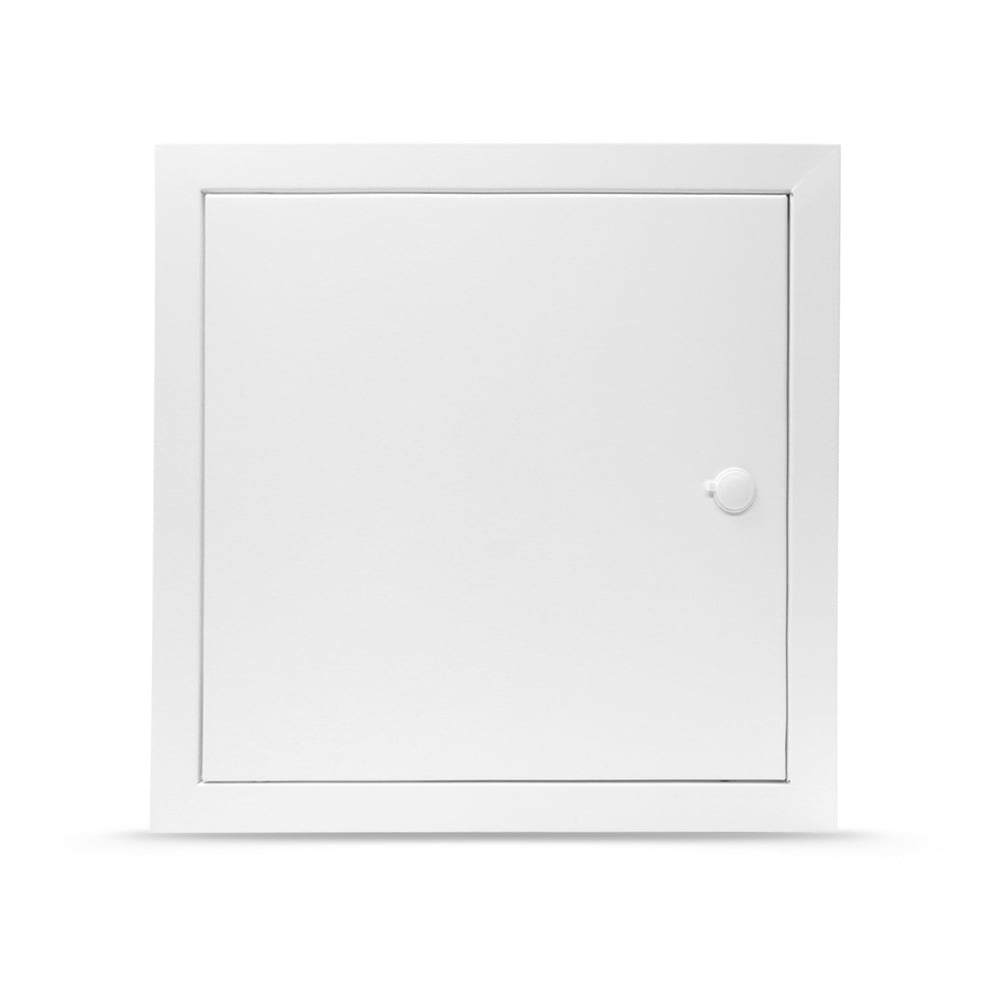

Premium Access Panel - Picture Frame
Product details
- Premium quality steel access panel range
- Hinged door which is easily removable
- Pre-drilled fixing holes for easy fitting
- Designed for a clean, concealed installation
- Available with Picture or Beaded Frame options
- Powder-coated in white RAL9010 with satin finish
- Fabricated from Zintec steel
- Suitable for use in walls or ceilings
The PFS range defines our Premium Standard Metal Access Panel, offering enhanced durability and structural integrity for reliable, non-fire rated access.
Premium Structural Specification:
• Enhanced Durability: Fabricated from 1.2mm thick, non-combustible Zintec steel, providing a more robust and rigid structure suitable for high-frequency access points.• Accessibility: Designed with a fully hinged door that is easily removable, facilitating unhindered access during complex maintenance or service installations.
Installation & Finish Quality:
• Frame Options: Available as a Picture Frame (PFS) for surface mounting or a Beaded Frame (BFS) for seamless concealment via plastering/jointing.• Finish & Maintenance: Coated in a hard-wearing RAL 9010 White satin finish, which is tough, easy to wipe clean, and provides a superior aesthetic ready for decoration.
• Rapid Installation: Supplied with pre-drilled fixing holes, streamlining the installation process into both wall and ceiling systems.
Did you know?
We can make this panel to custom dimensions.
*Hinged on the long edge.

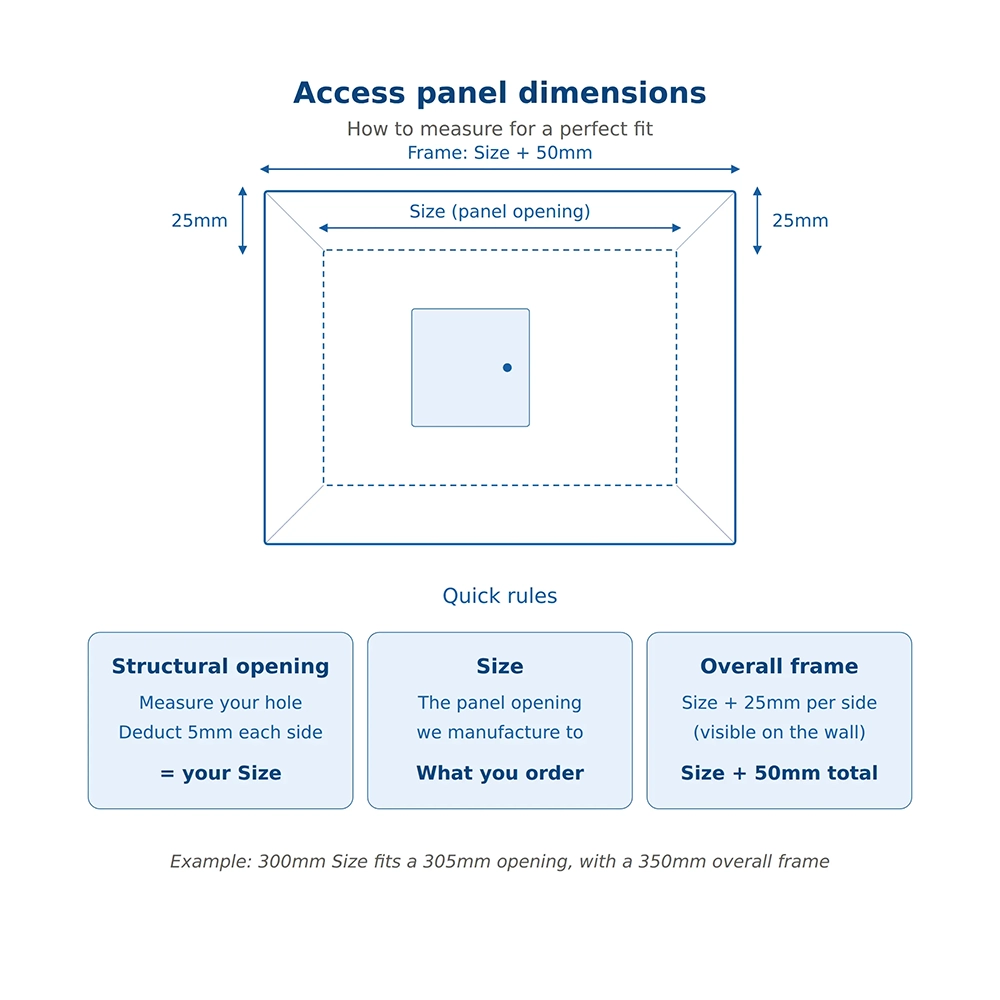

| Code | Size | Structural Opening | Overall size (Inc. Frame) |
Clear Opening (Once Installed) |
Depth | Weight |
|---|---|---|---|---|---|---|
| PFS-150 |
150x150mm | 155x155mm | 200x200mm | 120x110mm | 50mm | 1.0kg |
| PFS-200 |
200x200mm | 205x205mm | 250x250mm | 170x160mm | 50mm | 1.3kg |
| PFS-300 |
300x300mm | 305x305mm | 350x350mm | 270x260mm | 50mm | 2.2kg |
| PFS-350 |
350x350mm | 355x355mm | 400x400mm | 320x310mm | 50mm | 2.5kg |
| PFS-450 |
450x450mm | 455x455mm | 500x500mm | 420x410mm | 50mm | 3.5Kg |
| PFS-550 |
550x550mm | 555x555mm | 600x600mm | 520x510mm | 50mm | 4.7kg |
| PFS-600 |
600x600mm | 605x605mm | 650x650mm | 560x535mm | 50mm | 5.4kg |
| PFS-900X600 |
900x600mm* | 905x605mm | 950x650mm | 856x520mm | 50mm | 7.9kg |
| PFS-1200X600 |
1200x600mm* | 1205x605mm | 1250x650mm | 1156x520mm | 50mm | 10.3kg |
Reviews
-
Fantastic build quality - made to my exact dimensions. Would buy again.
-
Bought many times before and happy with product, does exactly what it is designed for, well packaged, quick delivery and happy to recommend
-
Super efficient
-
A repeat purchase for our clients, happy with product, does exactly what we require on job and happy to recommend. Will order again
-
Excellent product, does exactly what is required for an access panel, have bought before and will again. Happy to recommend
-
Exactly what I ordered, so it fitted perfectly.
-
The access panel is great quality and it was easy to install. Excellent value for money.
-
Well made and a perfect fit, would definitely recommend.
Need higher spec?
Upgrade options on the same panel — useful for healthcare, education or acoustic-rated projects.
Specification
- Frame style
- Picture Frame
- Fire rating
- Non Fire Rated
- Material
- Zintec Steel, white finish
- Frame width
- 25mm
- Wall or ceiling
- Both Wall & Ceiling
