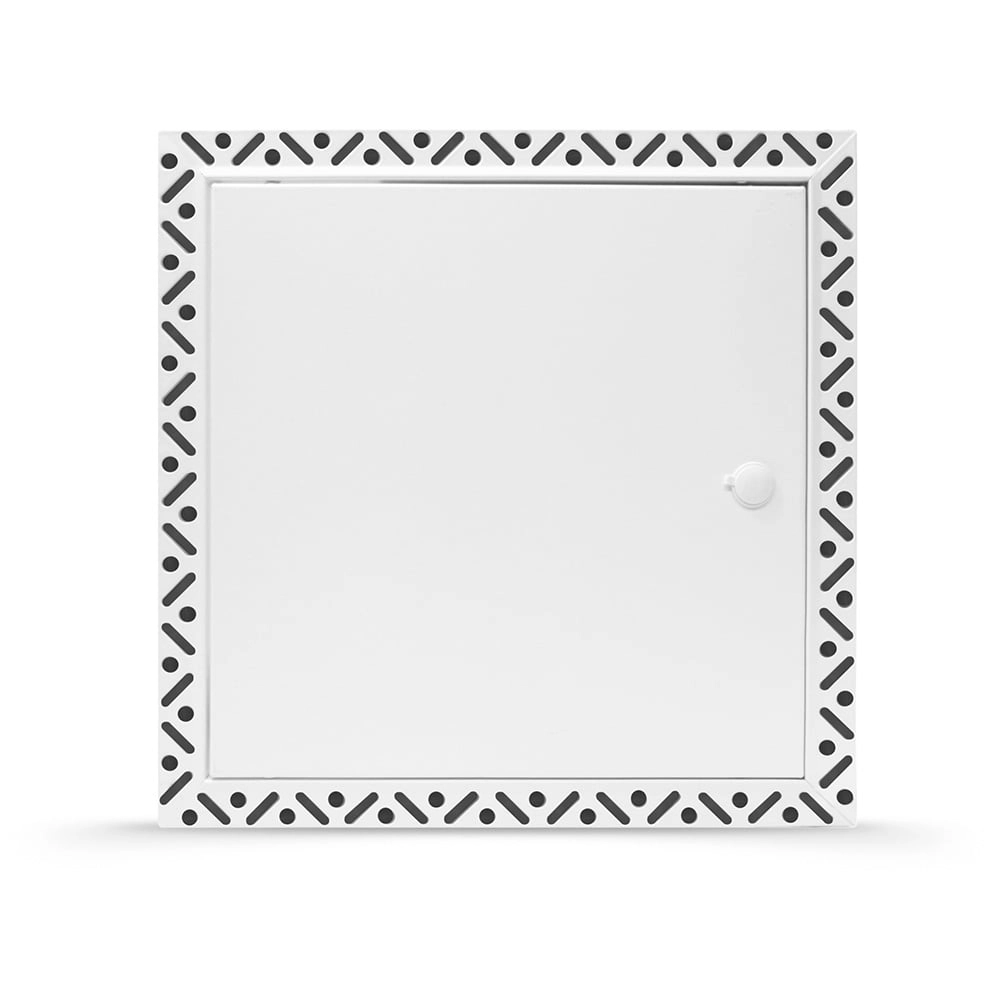

Shallow Access Panel - Beaded frame
Product details
- Manufactured from steel
- Designed for a clean, concealed installation
- Robust and durable design
- Shallow steel access panel, just 29mm deep
- Available with Picture or Beaded Frame options (25mm depth)
- Powder-coated in white RAL9010 with satin finish
- Fabricated from Zintec steel
- Suitable for use in walls or ceilings
The BFS-SH is our value-engineered Standard Metal Access Panel, providing a reliable, non-combustible, and exceptionally shallow solution for general access in walls and ceilings.
Core Material & Depth Specification:
• Material Construction: Fabricated entirely from robust, corrosion-resistant Zintec steel, guaranteeing a durable and non-combustible base product.• Shallow Profile: Engineered for minimalist intrusion, the panel features an ultra-slim, compact depth of just 29mm overall, ideal for restricted voids.
Installation Versatility & Finish:
• Frame Options: Available with both a Picture Frame (surface mounting) and a Beaded Frame (plaster-in for concealed installation) to suit all standard drywall finishing methods.• Aesthetic Finish: The frame and door are powder-coated in the industry-standard RAL 9010 White with a durable satin finish, ready for final decoration if required.
• Application: Suitable for general, non-fire rated access requirements in both vertical wall and horizontal ceiling applications.
*Hinged on the long edge.

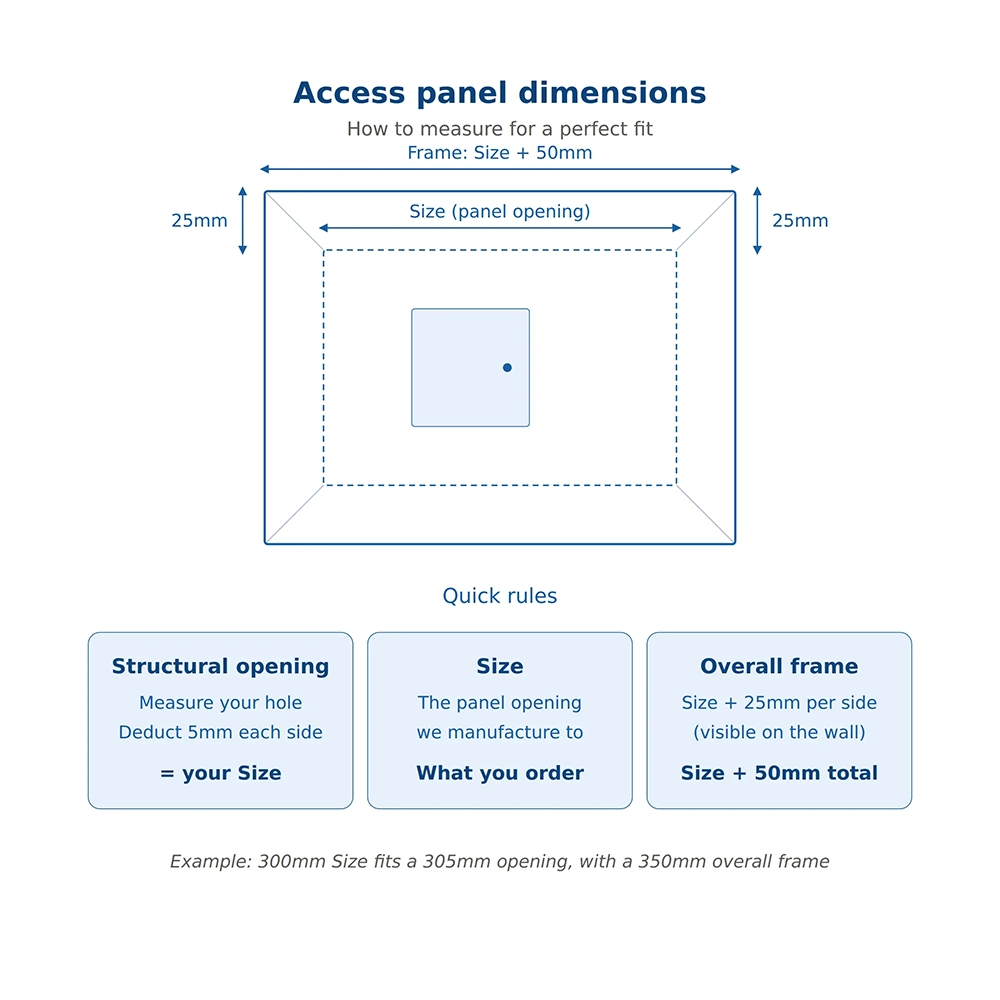

| Code | Size | Structural Opening | Overall size (Inc. Frame) |
Clear Opening (Once Installed) |
Depth | Weight |
|---|---|---|---|---|---|---|
| BFS-SH150X150 | 150x150mm | 155x155mm | 200x200mm | 147x97mm | 29mm | 0.7kg |
| BFS-SH200X200 | 200x200mm | 205x205mm | 250x250mm | 197x149mm | 29mm | 1.0kg |
| BFS-SH230X150 | 230x150mm* | 235x155mm | 280x200mm | 227x98mm | 29mm | 1.0kg |
| BFS-SH300X300 | 300x300mm | 305x305mm | 350x350mm | 298x250mm | 29mm | 1.5kg |
| BFS-SH350X350 | 350x350mm | 355x355mm | 400x400mm | 344x298mm | 29mm | 2.0kg |
| BFS-SH400X400 | 400x400mm | 405x405mm | 450x450mm | 399x344mm | 29mm | 2.4kg |
| BFS-SH450X450 | 450x450mm | 455x455mm | 500x500mm | 444x398mm | 29mm | 2.8kg |
| BFS-SH500X500 | 500x500mm | 505x505mm | 550x550mm | 495x442mm | 29mm | 3.4kg |
| BFS-SH550X550 | 550x550mm | 555x555mm | 600x600mm | 547x498mm | 29mm | 3.9kg |
| BFS-SH600X300 | 600x300mm* | 605x305mm | 650x350mm | 598x255mm | 29mm | 2.8kg |
| BFS-SH600X600 | 600x600mm | 605x605mm | 650x650mm | 598x547mm | 29mm | 4.5kg |
Reviews
-
Your service is always reliable also we have never received any products damaged or parts missing?
-
Excellent product, does exactly as required, have bought before and will again (repeated purchase)
-

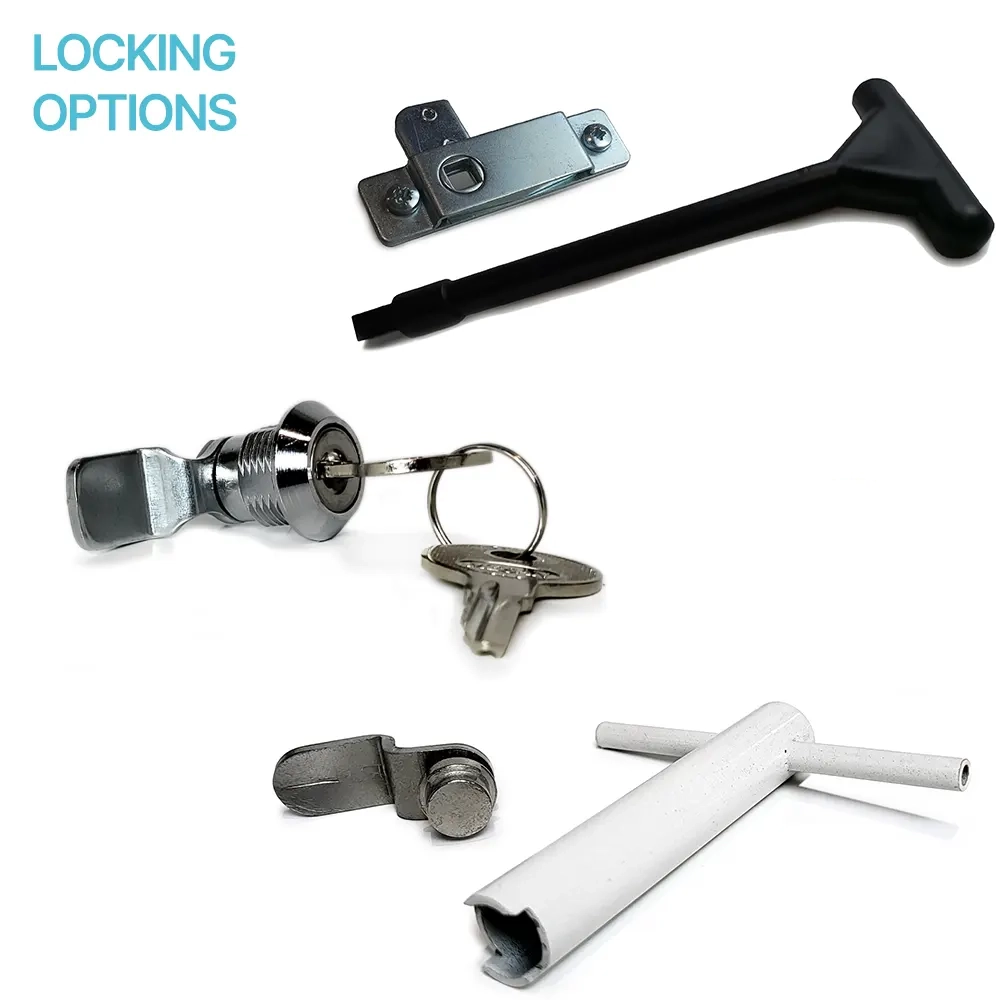

Good service as usual, from order to delivery. One thing that needs attention is that this is another order I have had, with missing white plastic inserts and cover caps, for the budget locks. Two out of the four were missing.......
-
Excellent product at a very reasonable price
-
Have ordered many times and happy with product, is a great fit for our work and does exactly it is meant to do - would recommend
-
Easy to order Arrived as promised - next working day Good quality and always my first choice for access panels 👍
-
As usual an excellent product at a great price and delivered promptly
-
Very good product, really prompt service, would recommend this company 👍👍👍
Specification
- Frame style
- Beaded Frame
- Fire rating
- Non Fire Rated
- Material
- Zintec Steel, white finish
- Frame width
- 25mm
- Wall or ceiling
- Both Wall & Ceiling
