TILED ACCESS | HINGED ACCESS
Tile Access Panel Hinged Door with Touch Catch lock
Non Fire Rated
Code:
ex VAT
Size (mm)
Other sizes
Made-to-measure lead time:
—
For large orders, lead times may vary — please contact us to confirm.
Hinge side *
Calculated price (per unit)
—
Price = price/sqm × (W × H) area
· minimum £110.00
Save on volume
Ordering 50 or more? We'll prepare a project-specific quote with delivery scheduling and account terms.
Call 01937 325 325 →
14-day returns
Phone support 8–5 Mon–Fri
Trusted by specifiers since 2007
Datasheet
Technical specifications
Installation Guide
PDF instructions
Product details
- Non-fire rated (For wall use only)
- Twin Touch catch locks (press to release)

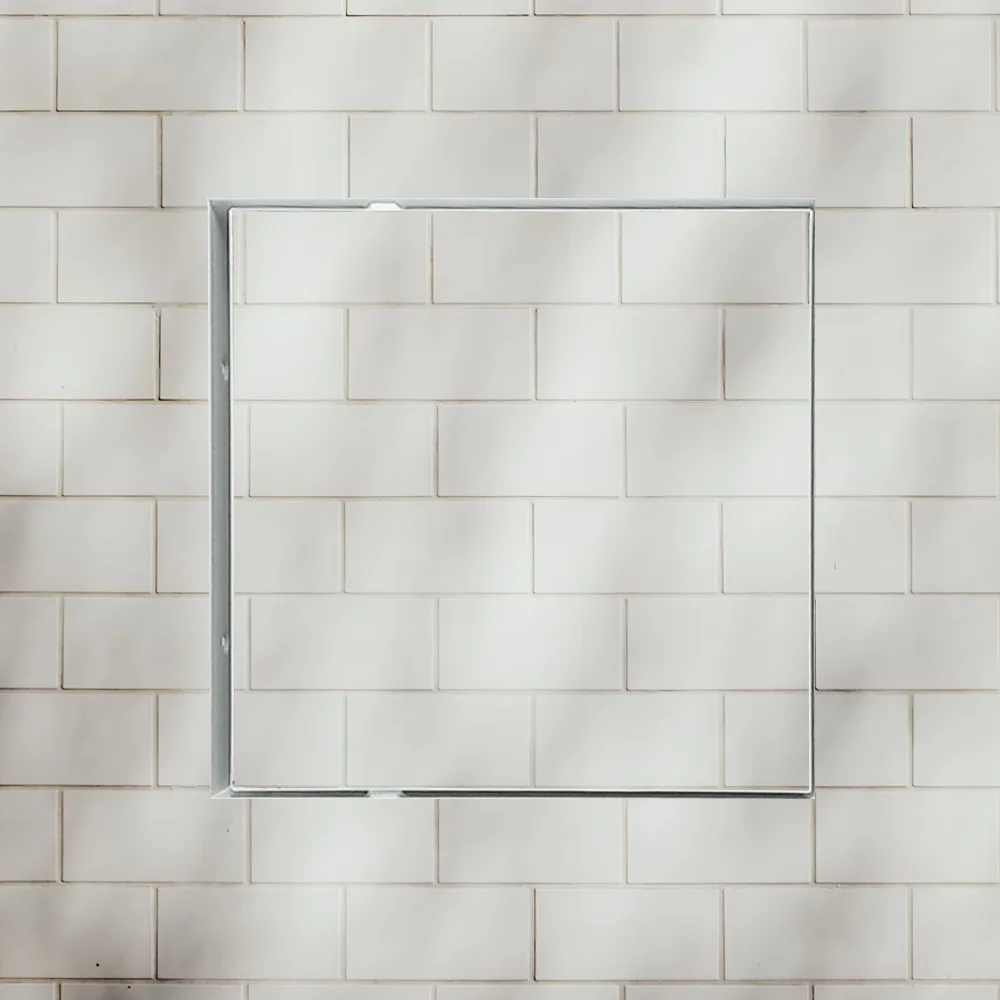

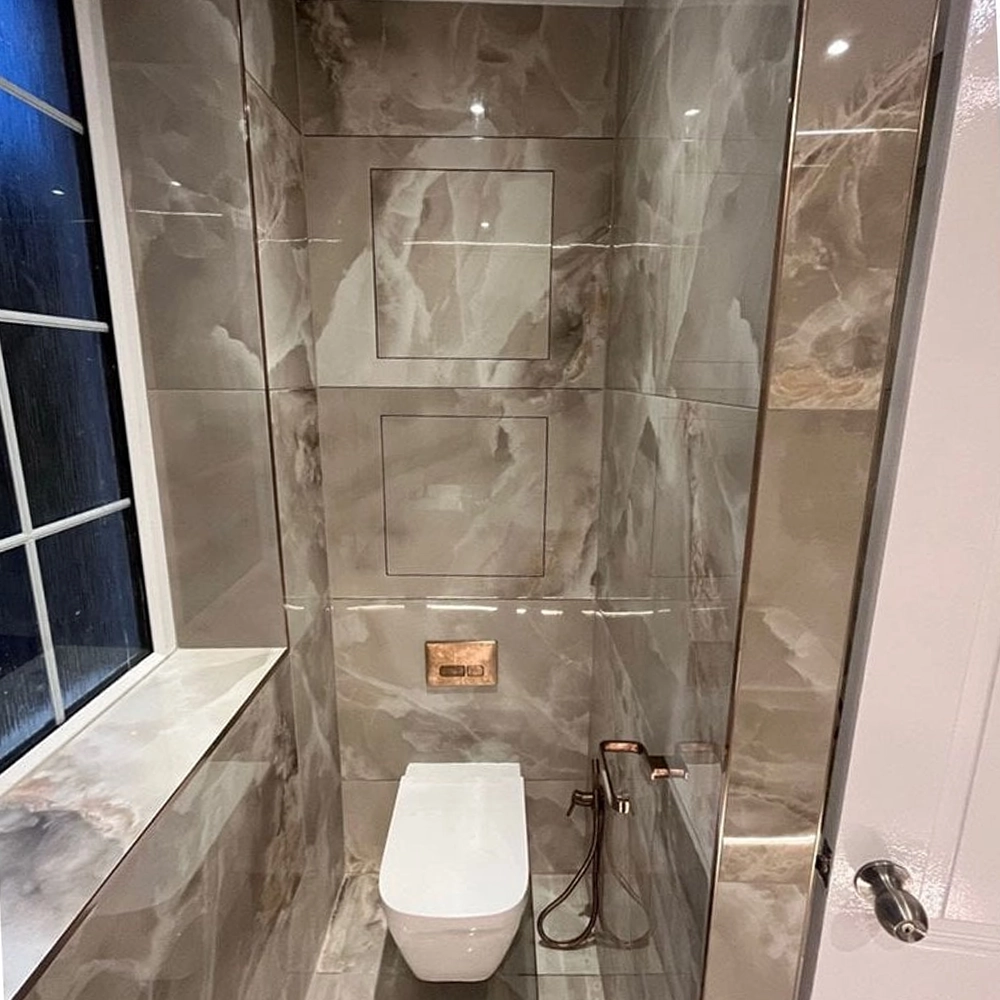

- Designed for a flush and neat tile finish
- Fixing points in front and side of frame for face or side fixing
- Door can be removed in seconds, with no tools
- Hinged Door
- Suitable for all tile types up to 12mm overall thickness
- Complies with General Building Regulations
The TILE-HIN-TL is a premium, steel-fabricated Tile Access Panel, engineered with a hinged, tool-free removable door and an invisible touch-latch system for seamless access.
Access Mechanism & Dual Functionality:
• Superior Hinging: Features robust stainless steel, spring hinges which allow the door to pivot smoothly for standard access.• Tool-Free Removability: The hinged door can be removed in seconds without the need for any tools, providing maximum clear access (with door removed) for larger service work.

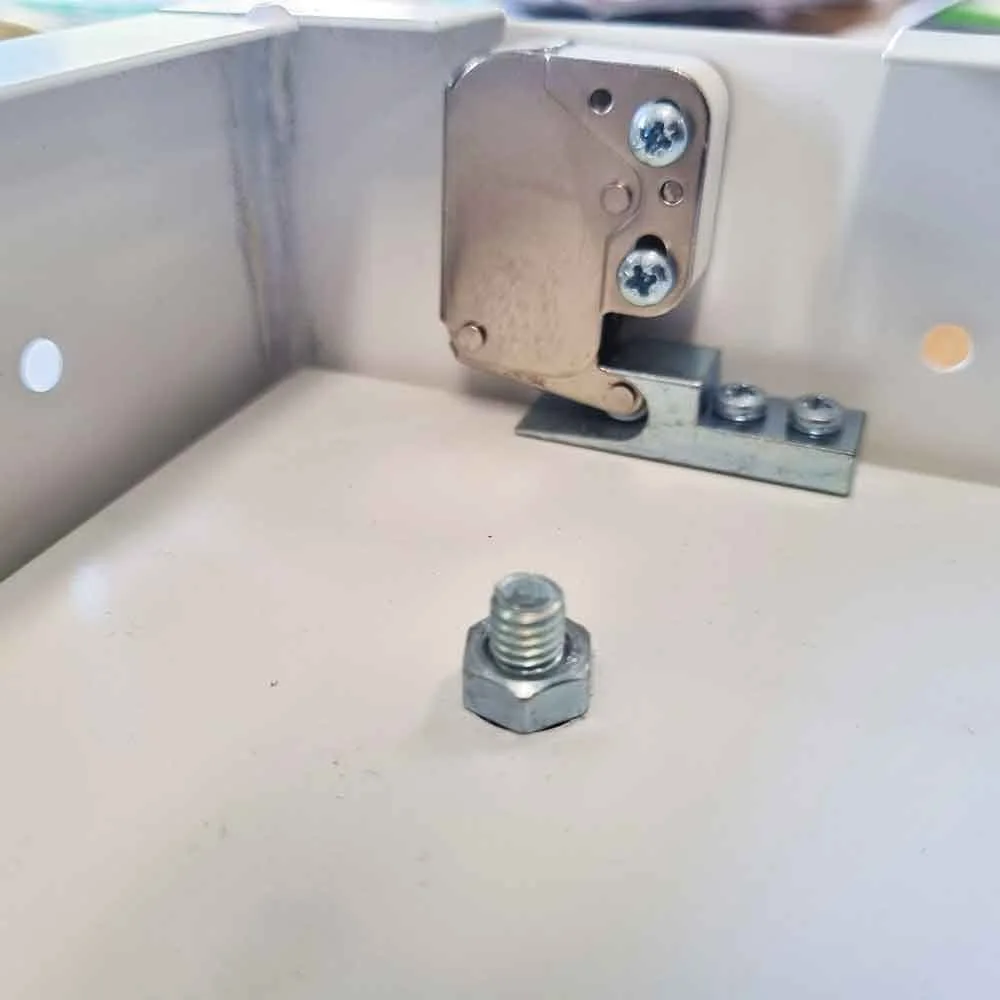

• Concealed Operation: Secured by a touch-latch mechanism, eliminating visible locks or handles to maintain an aesthetic tiled finish.
Material & Finish Preparation:

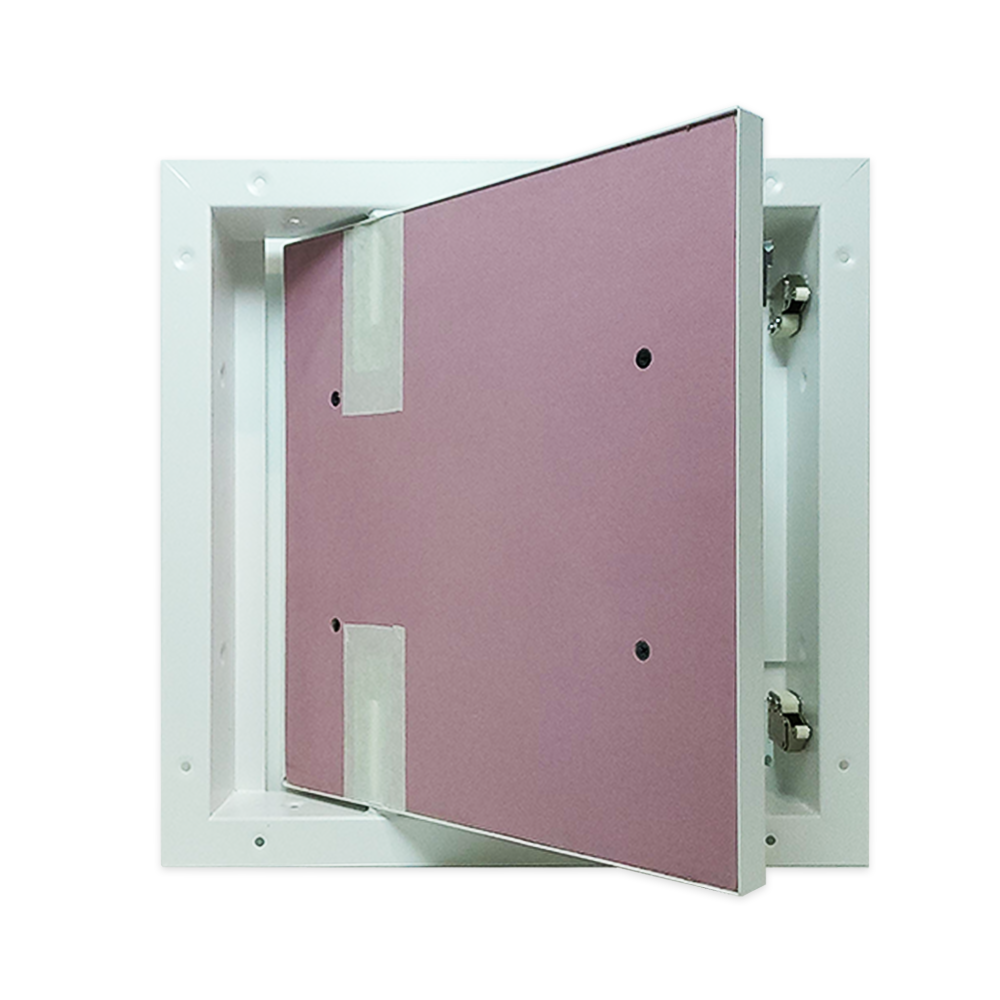

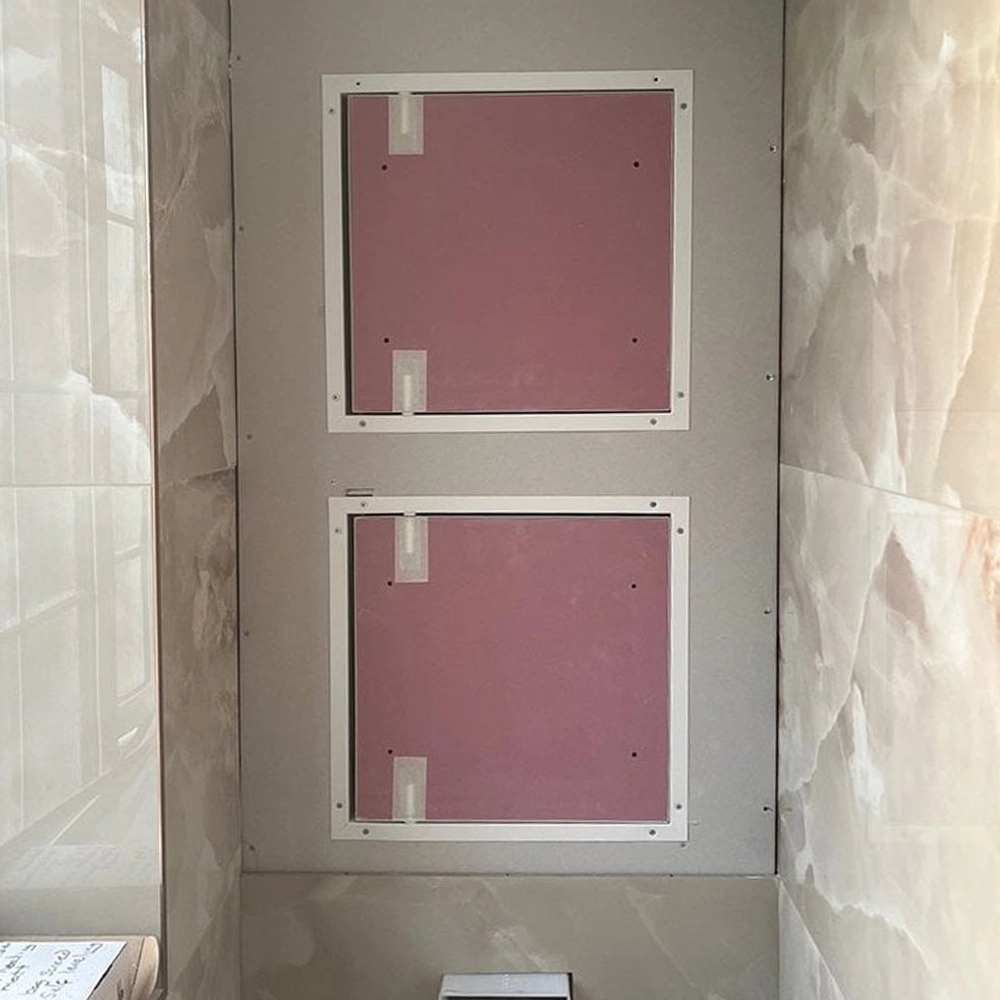

• Construction: Fabricated from durable Zintec steel white is powder coated white long-term durability.• Tile Ready Door: The door is fitted with a 12.5mm plasterboard insert specifically designed to accept tiles or other finishing materials to be securely bonded to the surface.
• Dimensions: *Reference to dimensions with door fitted vs. door removed is essential for calculating clear opening size.*
| Code | Door Size | Structural Opening | Overall product size | Clear opening | Depth |
|---|---|---|---|---|---|
| TILE-HIN-TL200X200 | 200x200mm | 223x223mm | 255x255mm | TBC | 60mm |
| TILE-HIN-TL300X300 | 300x300mm | 323x323mm | 355x355mm | 270 x 195mm | 60mm |
| TILE-HIN-TL400X400 | 400x400mm | 423x423mm | 455x455mm | TBC | 60mm |
| TILE-HIN-TL450X450 | 450x450mm | 473x473mm | 515x515mm | 420 x 330mm | 60mm |
| TILE-HIN-TL600X600 | 600x600mm | 623x623mm | 660x664mm | 572 x 495mm | 60mm |
Reviews
5.00
Based on 2 reviews
-
Brilliant product, works perfectly
-
excellent service and very professional
Specification
- Fire rating
- Non Fire Rated
- Material
- Zintec Steel Frame, Plasterboard Door
- Wall or ceiling
- Wall Only
