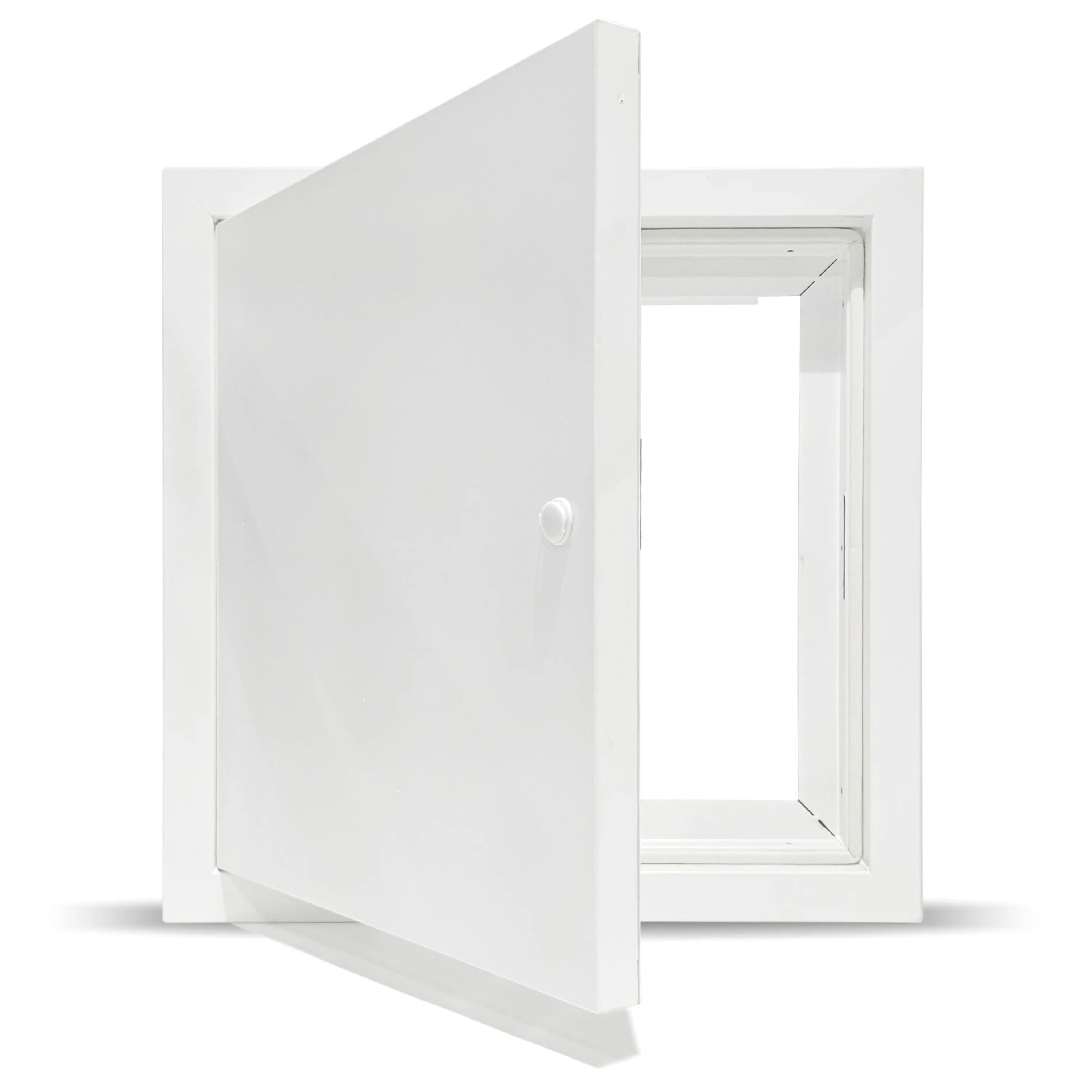

X-Ray Guard/CT Shield Access Panel - Code 5 lead

The Lead Lined Protection Access Panel is a premium, safety-critical barrier meticulously designed to provide robust protection against harmful X-ray and CT radiation in medical and clinical environments.

Radiation Protection & Core Features:

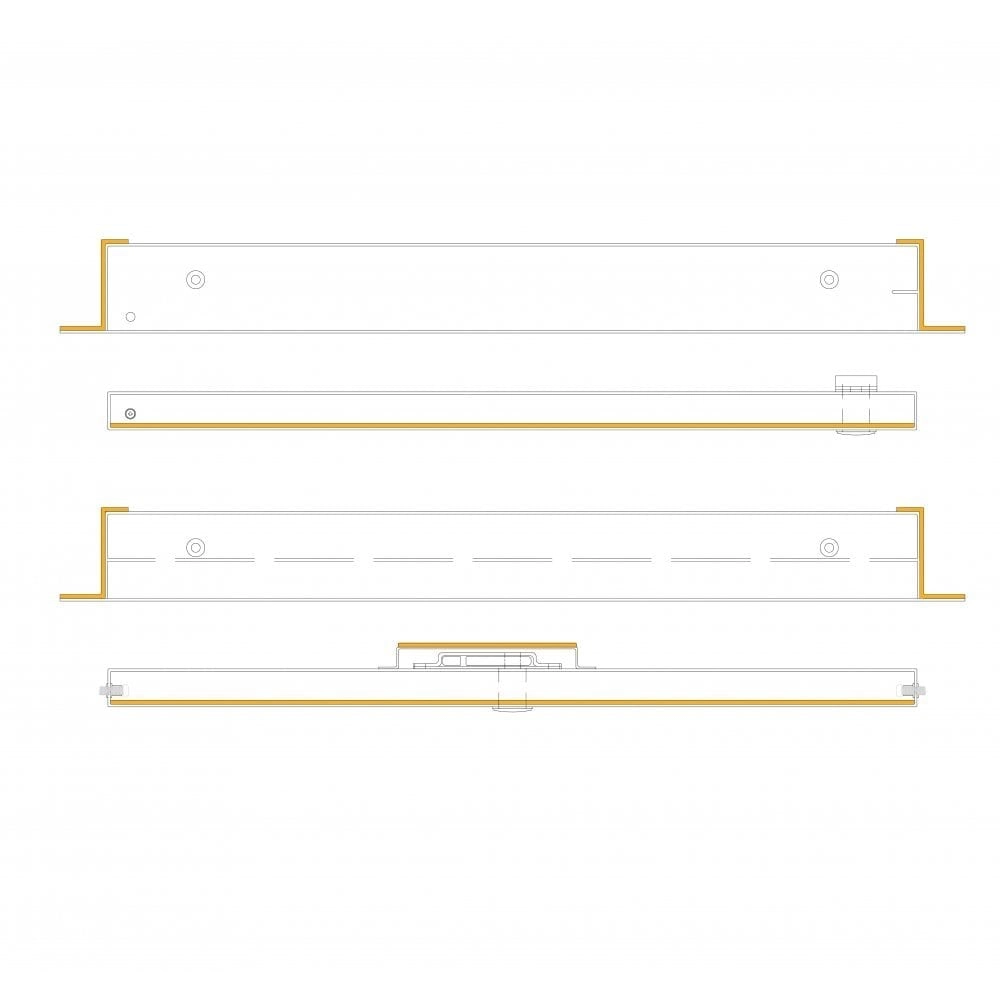

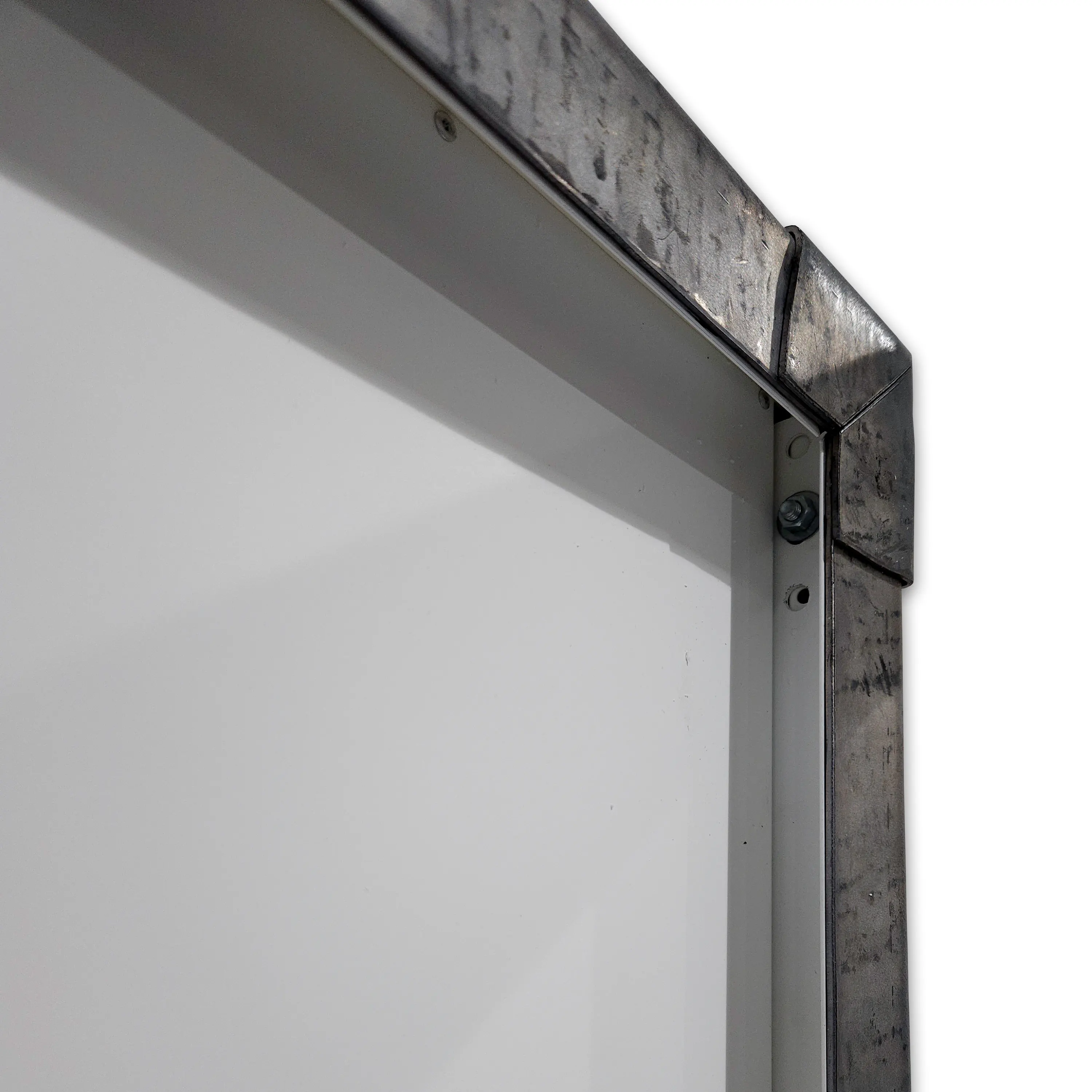

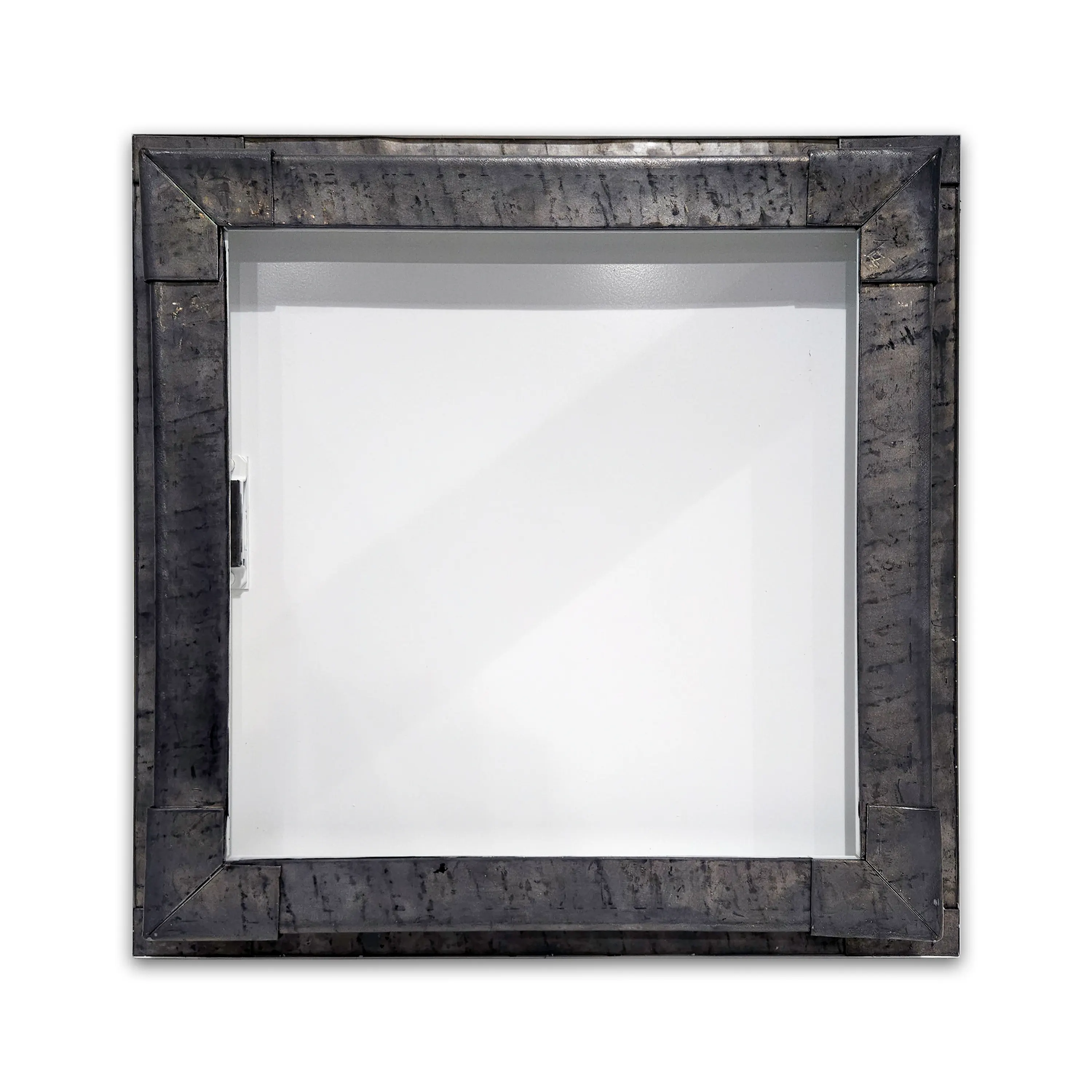

• Lead Protection: Lined with Code 5 Lead, providing superior radiation protection. This corresponds to a 2.24mm thick lead core, ideal for X-ray and CT scan room applications.
• Clinical Application: The Code 5 density is commonly used in CT scan rooms, offering high-density shielding that effectively blocks harmful radiation.
• Acoustic Reduction: The heavy protective core provides the additional benefit of acoustic reduction.
• Construction: A premium quality access panel range manufactured from Zintec Steel with concealed hinges.

Design, Security & Finish:

• Locking System: Secured with a T-Key locking function for restricted access.
• Finish: Features a durable White RAL 9010 Powder Coating.

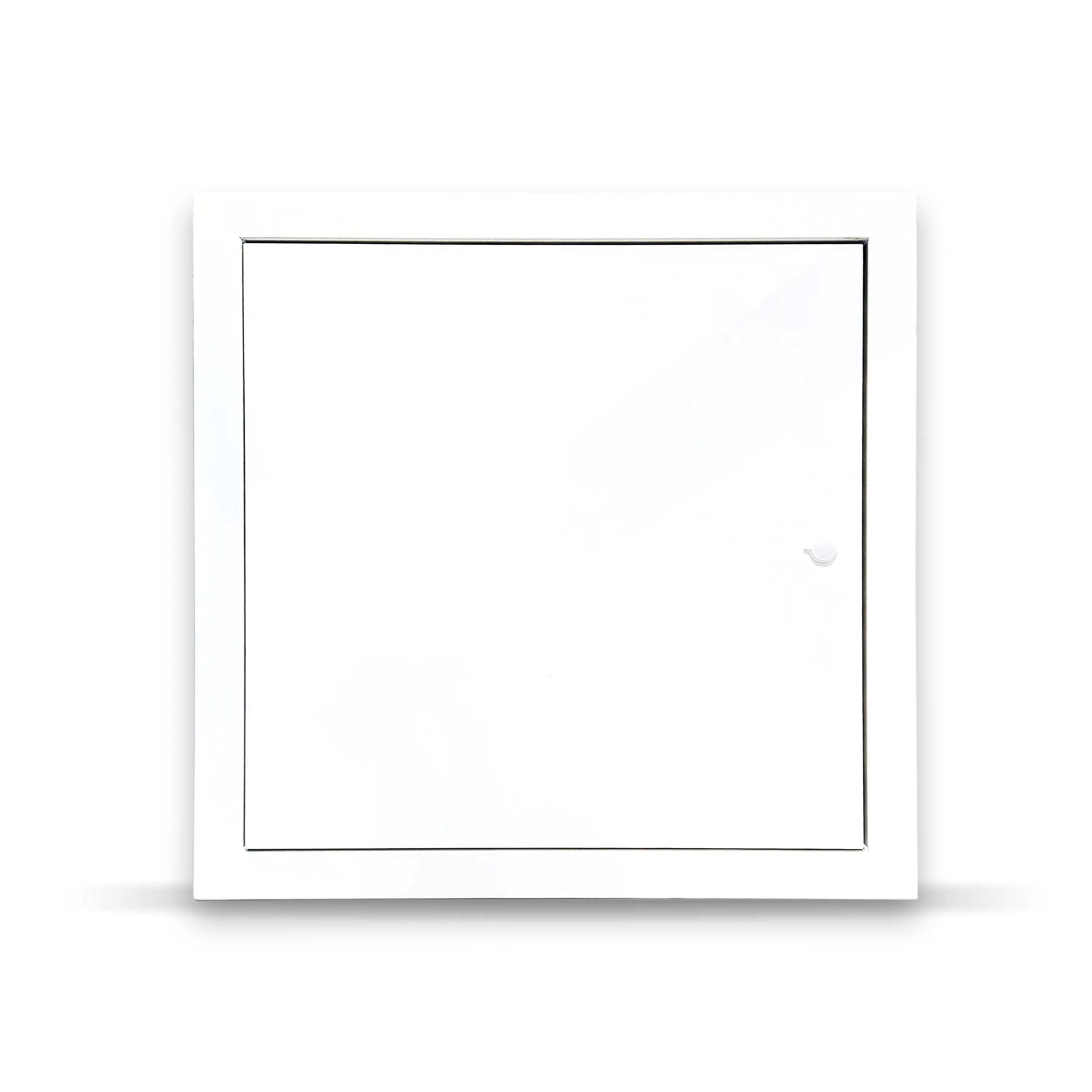

• Aesthetics: Designed with concealed hinges to maintain a clean, professional aesthetic.
• Patent Note: The product incorporates a unique design protected under Patent Application No.2408935.1.

Code 3 - Used for vetinary and dental applications
Code 4 - Used in x-ray rooms
Codes 5 & 6 - Used in CT scan rooms

Code	Structural Opening	Clear Opening (with door open)	Depth	Weight
PFS-LL-300X300	310x310mm	260x270mm	52mm	13kg
PFS-LL-450X450	460x460mm	410x420mm	52mm	19kg
PFS-LL-600X600	610x610mm	535x560mm	52mm	25kg
