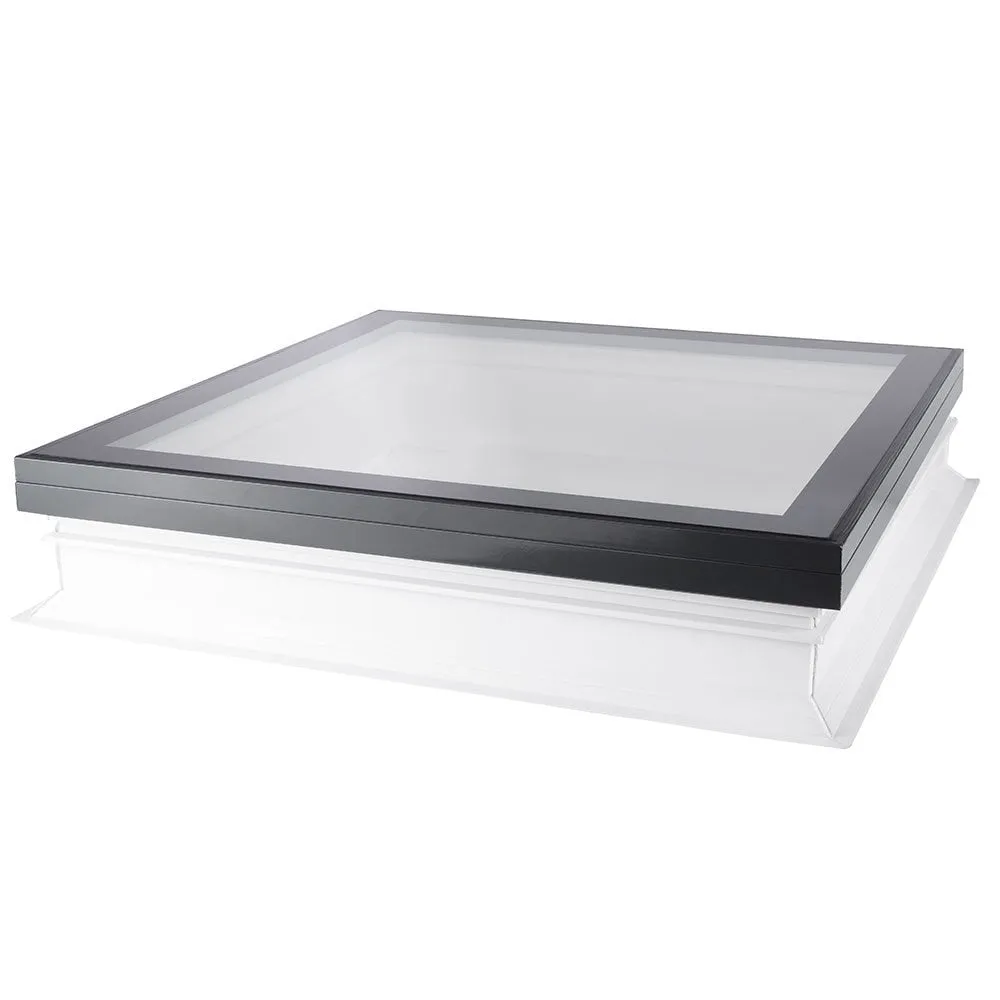

Coxdome Lumiglaze Glass Rooflight - Fixed
Product details
Lumiglaze – Flat Glass – Fixed
The COXDOME Lumiglaze Flat Glass Fixed Rooflight combines solid build quality with understated design. It uses a double-glazed glass unit set within a slim aluminium frame and a 160 mm PVC-u upstand. A thermal break within the upstand and frame boosts insulation and helps prevent condensation, while the powder-coated finish ensures long-lasting good looks. Sizes range from 600 mm to 2200 mm.
Its wide, flush-fitted glass surface floods interiors with natural light and offers unobstructed views of the sky. The toughened glass outer pane features a ceramic edge coating, and the insulated upstand is suitable for both new and existing openings in flat roofs.
Energy performance is enhanced by the frame’s internal thermal break, and all fixings are hidden under a flush cover for a tidy, secure finish.
For details on vertical upstands, lead times, or pricing, please contact our customer service team.
Key Points
- Suitable for modern builds or refurbishment projects
- Full-pane glass maximises daylight penetration
- Clear, open sky views from inside
- Sleek appearance on the external roofline
- 3–7° installation pitch
- 6 mm toughened outer glass with ceramic edge
- Internal thermal break for better efficiency
- High-security concealed fixings
Performance
- U-Value: 1.0 W/m²K
- Sound reduction: 35 dB
Lumiglaze Flat Glass Range – Side-by-Side Benefits Guide
| If you want… | Choose this model | Why it’s the right fit |
|---|---|---|
| A simple, non-opening glazed cover to bring in light without ventilation | Lid Only (Explore now) | Ideal if you just want daylight and a smart, flush finish with no moving parts. Great for rooms that don’t need extra airflow. |
| Maximum daylight with a fixed, fully sealed design | Fixed (Explore now) | Perfect for areas where you want uninterrupted views and zero drafts. The most airtight option for energy efficiency. |
| Natural light plus the option to let in fresh air when you want | Manual Opening (Explore now) | Opens by hand to control ventilation. Great for kitchens, studios, or any room where you sometimes need extra airflow. |
| Effortless ventilation at the push of a button | Electric Opening(Explore now) | Powered opening for easy control without reaching up. Ideal for high ceilings, hard-to-reach spots, or when you want the convenience of remote operation. |
Specification
- Glazing
- Double Glazed
- U-value
- 1.0 W/m²K
- Frame style
- Flat Glass
- Tested to
- Sound reduction: 35 dB
- Material
- Polycarbonate & Glass
- Frame width
- 160 mm PVC-u upstand
