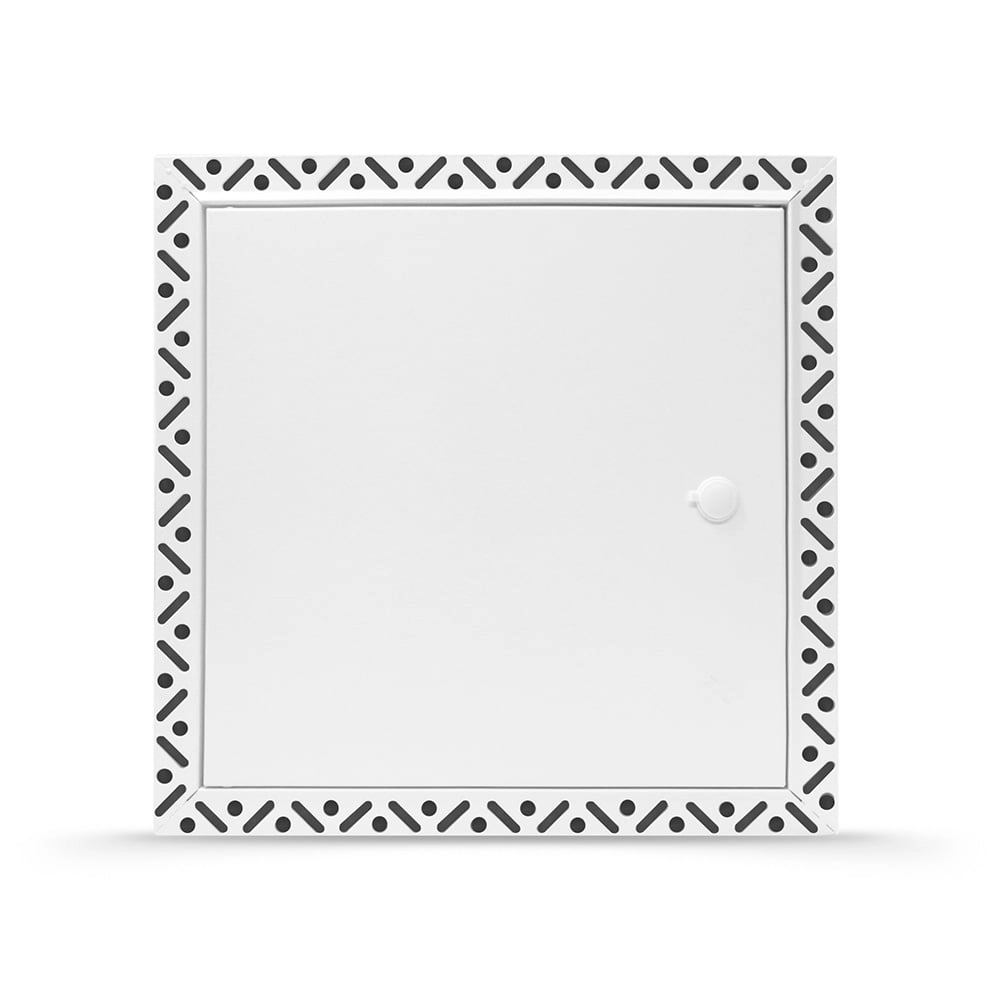

Premium Access Panel - Beaded Frame
Product details
- Premium quality steel access panel range
- Hinged door which is easily removable
- Pre-drilled fixing holes for easy fitting
- Designed for a clean, concealed installation
- Available with Picture or Beaded Frame options
- Powder-coated in white RAL9010 with satin finish
- Fabricated from Zintec steel
- Suitable for use in walls or ceilings
The BFS range defines our Premium Standard Metal Access Panel, offering enhanced durability and structural integrity for reliable, non-fire rated access.
Premium Structural Specification:
• Enhanced Durability: Fabricated from 1.2mm thick, non-combustible Zintec steel, providing a more robust and rigid structure suitable for high-frequency access points.• Accessibility: Designed with a fully hinged door that is easily removable, facilitating unhindered access during complex maintenance or service installations.
Installation & Finish Quality:
• Frame Options: Available as a Picture Frame (PFS) for surface mounting or a Beaded Frame (BFS) for seamless concealment via plastering/jointing.• Finish & Maintenance: Coated in a hard-wearing RAL 9010 White satin finish, which is tough, easy to wipe clean, and provides a superior aesthetic ready for decoration.
• Rapid Installation: Supplied with pre-drilled fixing holes, streamlining the installation process into both wall and ceiling systems.
Did you know?
We can make this panel to custom dimensions.
*Hinged on the long edge.

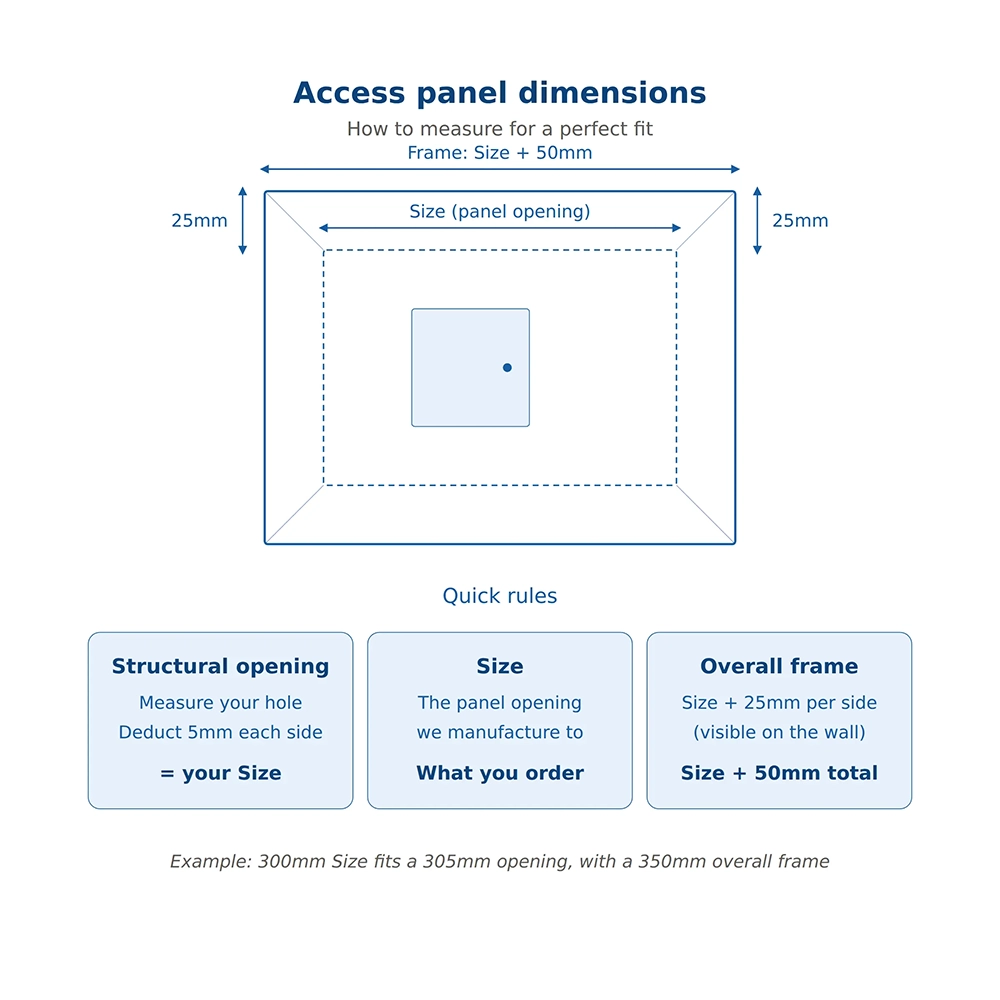

| Code | Size | Structural Opening | Overall size (Inc. Frame) |
Clear Opening (Once Installed) |
Depth | Weight |
|---|---|---|---|---|---|---|
BFS-150 |
150x150mm | 155x155mm | 200x200mm | 120x110mm | 50mm | 1.0kg |
| BFS-200 | 200x200mm | 205x205mm | 250x250mm | 170x160mm | 50mm | 1.3kg |
| BFS-300 | 300x300mm | 305x305mm | 350x350mm | 270x260mm | 50mm | 2.2kg |
| BFS-350 | 350x350mm | 355x355mm | 400x400mm | 320x310mm | 50mm | 2.5kg |
| BFS-450 | 450x450mm | 455x455mm | 500x500mm | 420x410mm | 50mm | 3.5Kg |
| BFS-550 | 550x550mm | 555x555mm | 600x600mm | 520x510mm | 50mm | 4.7kg |
| BFS-600 | 600x600mm | 605x605mm | 650x650mm | 560x535mm | 50mm | 5.4kg |
| BFS-900X600 | 900x600mm* | 905x605mm | 950x650mm | 856x520mm | 50mm | 7.9kg |
| BFS-1200X600 | 1200x600mm* | 1205x605mm | 1250x650mm | 1156x520mm | 50mm | 10.3kg |
Reviews
-
These are a very clean looking solution as an access panel, easy to install quite costly by comparison to some alternatives but worth it👍
-
as always with JP it arrived within a couple of days and exactly as required
-
The Panel arrived quickly and is exactly what I needed. Slim and discrete.
-
everything was easy, to order and delivered next day a 5star item and 5star service will defo use this company again , thank you team
-
We use these panels in different applications and find they are easy to install and provide good access.
-
Neat budget priced access panels. Will order again
-
Just what i needed to make a couple of locakable custom doors in our bath panel. They worked so well I might be a 3rd one for another door in the middle.
-
These EPFS Access Panels are just the job for adding a neat finish to areas in walls where access to services are needed. Lightweight, simple to install and good value for money.
Specification
- Frame style
- Beaded Frame
- Fire rating
- Non Fire Rated
- Material
- Zintec Steel, white finish
- Frame width
- 25mm
- Wall or ceiling
- Both Wall & Ceiling
